SN74LS138N

Number of Bits :
Propagation Delay Time :
Product : Decoder / Demultiplexer
Number of Lines (Input / Output) : 3 / 8
Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-16
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 70 C
Logic Family : LS


Features:

• Demultiplexing Capability
• Multiple Input Enable for Easy Expansion
• Typical Power Dissipation of 32 mW
• Active Low Mutually Exclusive Outputs
• Input Clamp Diodes Limit High Speed Termination Effects

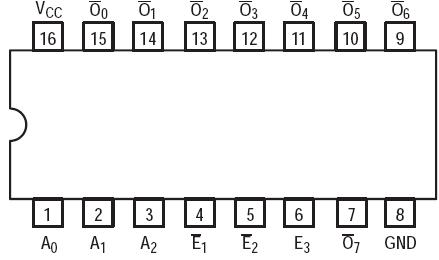

Pinout




Description

The SN74LS138N is a high speed 1-of-8 Decoder/ Demultiplexer. This device is ideally suited for high speed bipolar memory chip select address decoding. The multiple input enables allow parallel expansion to a 1-of-24 decoder using just three LS138 devices or to a 1-of-32 decoder using four LS138s and one inverter. The SN74LS138N is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all ON Semiconductor TTL families.

Parameters:

Technical/Catalog Information	SN74LS138N
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Circuit	1 x 3:8
Independent Circuits	1
Mounting Type	Through Hole
Current - Output High, Low	400A, 8mA
Package / Case	16-DIP (300 mil)
Packaging	Tube
Type	Decoder/Demultiplexer
Voltage Supply Source	Single Supply
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.75 V ~ 5.25 V
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LS138N SN74LS138N 296 1639 5 ND 29616395ND 296-1639-5
