SN74LS156N

Number of Bits :
Propagation Delay Time :
Product : Decoder / Demultiplexer
Packaging : Tube
Number of Lines (Input / Output) : 2 / 4
Mounting Style : Through Hole
Package / Case : PDIP-16
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 70 C
Logic Family : LS


Features:

• Schottky Process for High Speed
• Multifunction Capability
• Common Address Inputs
• True or Complement Data Demultiplexing
• Input Clamp Diodes Limit High Speed Termination Effects
• ESD > 3500 Volts

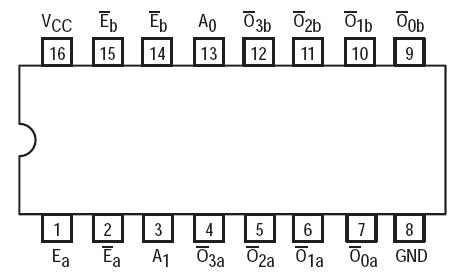

Pinout




Description

The SN74LS156N is a high speed Dual 1-of-4 Decoder/ Demultiplexer. This device has two decoders with common 2-bit Address inputs and separate gated Enable inputs. Decoder "a" has an Enable gate with one active HIGH and one active LOW input. Decoder "b" has two active LOW Enable inputs. If the Enable functions are satisfied, one output of each decoder will be LOW as selected by the address inputs. The SN74LS156N has open collector outputs for wired-OR (DOT-AND) decoding and function generator applications.

The SN74LS156N is fabricated with the Schottky barrier diode process for high speed and are completely compatible with all ON Semiconductor TTL families.

Parameters:

Technical/Catalog Information	SN74LS156N
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Circuit	2 x 1:4
Independent Circuits	1
Mounting Type	Through Hole
Current - Output High, Low	-
Package / Case	16-DIP (300 mil)
Packaging	Tube
Type	Decoder/Demultiplexer
Voltage Supply Source	Single Supply
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.75 V ~ 5.25 V
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LS156N SN74LS156N 296 3655 5 ND 29636555ND 296-3655-5
