SN74LS174N

Polarity : Non-Inverting
Input Type : Single-Ended
Output Type : Single-Ended
Propagation Delay Time : 30 ns
Mounting Style : Through Hole
Packaging : Tube
Logic Type : D-Type Flip-Flop
High Level Output Current : - 0.4 mA
Low Level Output Current : 8 mA
Maximum Operating Temperature : + 70 C
Number of Circuits : 7
Logic Family : 74LS
Supply Voltage - Max : 5.25 V
Package / Case : PDIP-16


Features:

• Edge-Triggered D-Type Inputs
• Buffered-Positive Edge-Triggered Clock
• Asynchronous Common Reset
• Input Clamp Diodes Limit High Speed Termination Effects

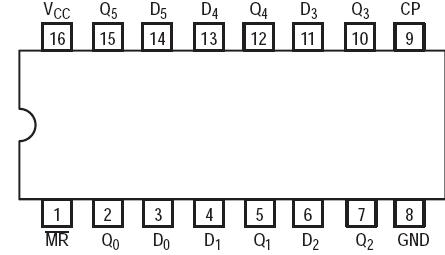

Pinout




Description

The LSTTL/MSI SN74LS174 is a high speed Hex D Flip-Flop. The device is used primarily as a 6-bit edge-triggered storage register. The information on the D inputs is transferred to storage during the LOW to HIGH clock transition. The device has a Master Reset to simultaneously clear all flip-flops. The LS174 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all ON Semiconductor TTL families.
