SN74LS240N: Buffers & Line Drivers Octal Buffer/Line

SN74LS240N Data Sheet

US $ .32~.47 / Piece | Get Latest Price

Part Number:: SN74LS240N
Mfg:: Texas Instruments
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.47
$.42
$.37
$.32

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SN7400 evaluate
Features: *Package Options Include Plastic Small-Outline (D, NS, PS), Shrink Small-Outline (DB), a...
SN7400D evaluate
US $.55 - .79 / Piece

Gates (AND / NAND / OR / NOR) Quad 2-input Positive-NAND gates
SN7400DE4 evaluate
US $.51 - .79 / Piece

Gates (AND / NAND / OR / NOR) Quad 2-input Positive-NAND gates

Product Details

Quick Details

Number of Input Lines :	8	Number of Output Lines :	8
Polarity :	Inverting	Supply Voltage - Max :	5.25 V
Supply Voltage - Min :	4.75 V	Maximum Operating Temperature :	+ 70 C
Mounting Style :	Through Hole	Package / Case :	PDIP-20
Packaging :	Tube

Description

Number of Input Lines : 8
Number of Output Lines : 8
Polarity : Inverting
Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-20
Maximum Operating Temperature : + 70 C
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V

Features:

• Hysteresis at Inputs to Improve Noise Margins
• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
• Input Clamp Diodes Limit High-Speed Termination Effects

Pinout

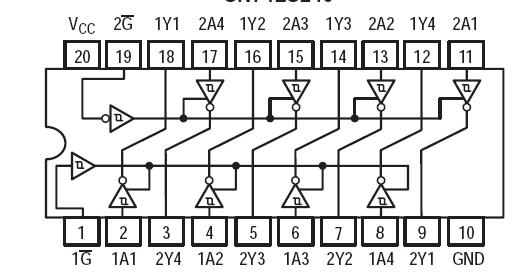

Connection Diagram

Description

The SN74LS240 and SN74LS244 are Octal Buffers and Line Drivers designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density.

Parameters:

Technical/Catalog Information	SN74LS240N
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Logic Type	Line Driver, Inverting
Package / Case	20-DIP (300 mil)
Packaging	Tube
Mounting Type	Through Hole
Number of Bits per Element	4
Number of Elements	2 - Dual
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.75 V ~ 5.25 V
Current - Output High, Low	15mA, 24mA
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LS240N SN74LS240N 296 1651 5 ND 29616515ND 296-1651-5
