SN74LS245DBR

Number of Channels per Chip : 8
Output Type : 3-State
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 70 C
Packaging : Reel
Logic Type : Standard Transceiver
Low Level Output Current : 24 mA
Input Level : TTL
Output Level : TTL
High Level Output Current : - 15 mA
Package / Case : SSOP-20
Logic Family : LS
Propagation Delay Time : 12 ns


Features:

· 3-State Outputs Drive Bus Lines Directly
· PNP Inputs Reduce dc Loading on Bus Lines
· Hysteresis at Bus Inputs Improves Noise Margins
· Typical Propagation Delay Times Port to Port, 8 ns

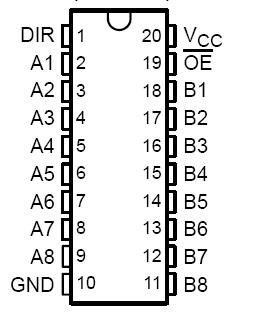

Pinout




Specifications

Supply voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Package thermal impedance, _JA (see Note 2): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . .  70°C/W
DW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58°C/W
N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  69°C/W
NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  60°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values are with respect to GND.
2. The package thermal impedance is calculated in accordance with JESD 51-7.


Description

These octal bus transceivers are designed forasynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can disable the device so that the buses are effectively isolated.

Parameters:

Technical/Catalog Information	SN74LS245DBR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Logic Type	Transceiver, Non-Inverting
Package / Case	20-SSOP
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1 - Single
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.75 V ~ 5.25 V
Current - Output High, Low	15mA, 24mA
Drawing Number	296; 4040065; DB; 14, 16, 20, 24, 28, 30, 38
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LS245DBR SN74LS245DBR
