SN74LS251N

Encoders, Decoders, Multiplexers & Demultiplexers 8 to 1

product image

SN74LS251N Picture
See larger image
SeekIC No. : 00423153 Detail

SN74LS251N: Encoders, Decoders, Multiplexers & Demultiplexers 8 to 1

SN74LS251N Data Sheet

floor Price/Ceiling Price

US $ .34~.49 / Piece | Get Latest Price
Part Number:
SN74LS251N
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.49
  • $.44
  • $.39
  • $.34
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Selector / Multiplexer Logic Family : LS
Number of Lines (Input / Output) : 8 / 1 Propagation Delay Time : 28 ns at 5 V
Supply Voltage - Max : 5.25 V Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 70 C Mounting Style : Through Hole
Package / Case : PDIP-16 Packaging : Tube

Description

Number of Bits :
Product : Selector / Multiplexer
Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-16
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 70 C
Logic Family : LS
Number of Lines (Input / Output) : 8 / 1
Propagation Delay Time : 28 ns at 5 V


Features:

• Schottky Process for High Speed
• Multifunction Capability
• On-Chip Select Logic Decoding
• Inverting and Non-Inverting 3-State Outputs
• Input Clamp Diodes Limit High Speed Termination Effects


Specifications

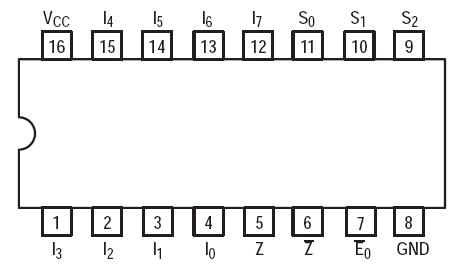

Connection Diagram


Description

The TTL/MSI SN74LS251 is a high speed 8-Input Digital Multiplexer. It provides, in one package, the ability to select one bit of data from up to eight sources. The LS251 can be used as a universal function generator to generate any logic function of four variables. Both assertion and negation outputs are provide
