SN74LS253N

Number of Bits :
Product : Selector / Multiplexer
Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-16
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 70 C
Number of Lines (Input / Output) : 4 / 1
Logic Family : LS
Propagation Delay Time : 25 ns at 5 V


Features:

• Schottky Process for High Speed
• Multifunction Capability
• Non-Inverting 3-State Outputs
• Input Clamp Diodes Limit High Speed Termination Effects

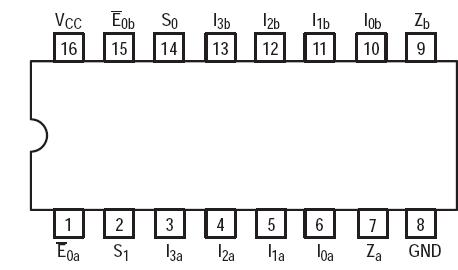

Pinout




Description

The LSTTL/MSI SN74LS253 is a Dual 4-Input Multiplexer with 3-state outputs. It can select two bits of data from four sources using common select inputs. The outputs may be individually switched to a high impedance state with a HIGH on the respective Output Enable (E0) inputs, allowing the outputs to interface directly with bus oriented systems. It is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all ON Semiconductor TTL families.
