Product Details

Description



Features:

Can Be Used as a 4-Bit Digital Comparator
Input Clamping Diodes Simplify System Design
Fully Compatible With Most TTL Circuits


Pinout

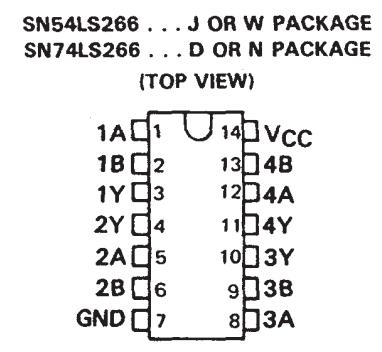

Connection Diagram


Specifications

Supply voltag,VCC(see Note 1)...............................................................7V
Input voltage.........................................................................................7V
Operating free-air temperature range:SN54LS266..............-55 to 125
                                                             SN74LS266....................0to 70
Storage temperature range.................................................-65 to 150


Description

The'LS266 is comprised of four independent 2-input exclusive-NOP gates with open-collector outputs permti tying outputs together for multipe-bit comparisons.
