Purchase SN74LS682NSR, In-stock SN74LS682NSR From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

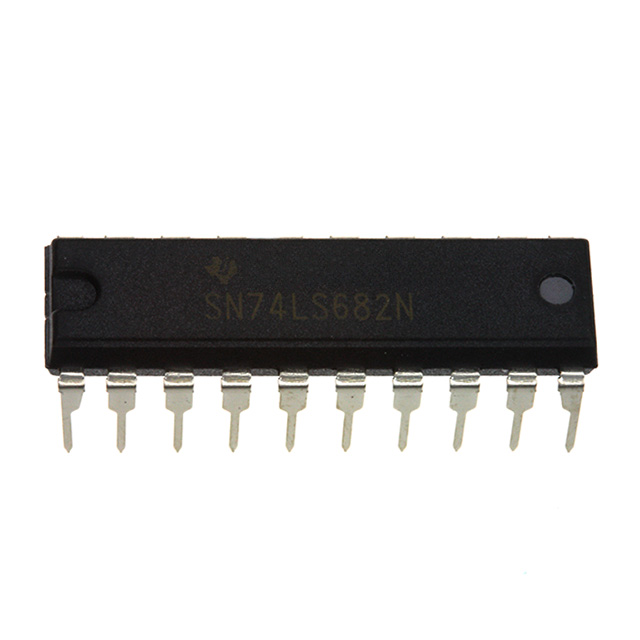

SN74LS682NSR Product Image

SN7 Series Datasheet download

Five Points

Part Number: SN74LS682NSR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC COMPARATOR MAGNITUDE 8B 20SOP

Price Break

2000

Unit Price

1.37700

Extended Price

2754.00

(All prices are in USD) Prices for reference only
Urgent Purchase

SN74LS682NSR General Description

IC COMPARATOR MAGNITUDE 8B 20SOP

SN74LS682NSR Parameters

Technical/Catalog InformationSN74LS682NSR
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeMagnitude Comparator
Number of Bits8
Voltage - Supply4.85 V ~ 5.25 V
Current - Supply42mA
Delay Time - Propagation19ns
Package / Case20-SOP
PackagingTape & Reel (TR)
Operating Temperature0°C ~ 70°C
Drawing Number296; 4040062; NS; 14, 16, 20, 24
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74LS682NSR
SN74LS682NSR

SN74LS682NSR datasheet

SN74LS682NSR
PDF/DataSheet Download
