Position: Home > Datasheet list > SN7 Series > Index S > SN74LV08ADGVRG4
Electronica China

Purchase SN74LV08ADGVRG4, In-stock SN74LV08ADGVRG4 From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

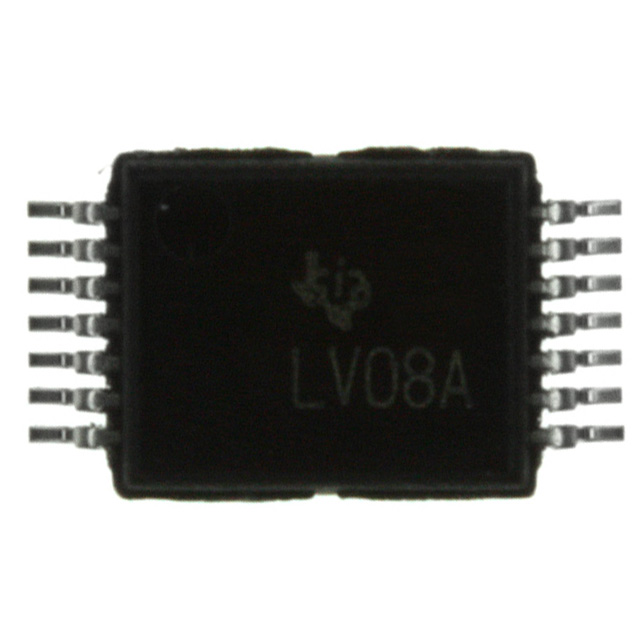

SN74LV08ADGVRG4 Product Image

SN7 Series Datasheet download

Five Points

Part Number: SN74LV08ADGVRG4

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC QUAD 2-IN POS-AND GATE14TVSOP

Price Break

4000

Unit Price

.13090

Extended Price

523.60

(All prices are in USD) Prices for reference only
Urgent Purchase

SN74LV08ADGVRG4 General Description

IC QUAD 2-IN POS-AND GATE14TVSOP

SN74LV08ADGVRG4 Parameters

Technical/Catalog InformationSN74LV08ADGVRG4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-TVSOP
Logic TypeAND Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low12mA, 12mA
Supply Voltage2 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 5.5 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74LV08ADGVRG4
SN74LV08ADGVRG4
