Product Details

Description



Application

Audio                                www.ti.com/audio
Automotive                       www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                   www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless



Pinout

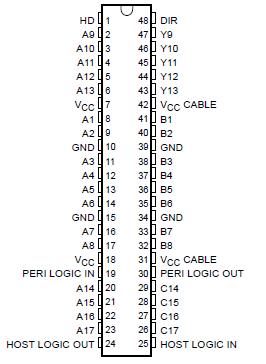

  Connection Diagram


Specifications

Supply voltage range: VCC CABLE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .  . . . 0.5 V to 7 V
Input and output voltage range, VI and VO: Cable side (see Notes 1 and 2) . . . . . . . 2 V to 7 V
                                                                      Peripheral side (see Note 1)  . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous current through each VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±200 mA
Output high sink current, ISK (VO = 5.5 V and VCC CABLE = 5.5 V) . . . . . . . . . . . . . . . . . . . . . 65 mA
Package thermal impedance, JA (see Note 3): DGG package .. . .. . . . . . . . . . . . . . . . . . . . 70°C/W
                                                                           DL package. . . . . . . . . . . . . . . . . . . . . . . . . 63°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
             2. The ac input voltage pulse duration is limited to 40 ns if the amplitude is more negative than 0.5 V.
             3. The package thermal impedance is calculated in accordance with JESD 51-7



Description

The SN74LV161284 is designed for 4.5-V to 5.5-V VCC operation. This device provides asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

This device has eight bidirectional bits; data can flow in the A-to-B direction when DIR is high, and in the B-to-A direction when DIR is low. This device also has five drivers, which drive the cable side, and four receivers. The SN74LV161284 has one receiver dedicated to the HOST LOGIC line and a driver to drive the PERI LOGIC line.
