SN74LV541A

Features: 2-V to 5.5-V VCC OperationMax tpd of 6 ns at 5 VTypical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°CTypical VOHV (Output VOH Undershoot) >2.3 V at VCC = 3.3 V, TA = 25°CSupport Mixed-Mode Voltage Operation on All PortsIoff Supports Partial-Power-Down Mode OperationL...

product image

SN74LV541A Picture
See larger image
SeekIC No. : 004499185 Detail

SN74LV541A: Features: 2-V to 5.5-V VCC OperationMax tpd of 6 ns at 5 VTypical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°CTypical VOHV (Output VOH Undershoot) >2.3 V at VCC = 3.3 V, TA = 2...

SN74LV541A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LV541A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 2-V to 5.5-V VCC Operation
 Max tpd of 6 ns at 5 V
 Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
 Typical VOHV (Output VOH Undershoot) >2.3 V at VCC = 3.3 V, TA = 25°C
 Support Mixed-Mode Voltage Operation on All Ports
 Ioff Supports Partial-Power-Down Mode Operation
 Latch-Up Performance Exceeds 250 mA Per JESD 17
 ESD Protection Exceeds JESD 22
  −  2000-V Human-Body Model (A114-A)
  −  200-V Machine Model (A115-A)
  −  1000-V Charged-Device Model (C101)


Pinout

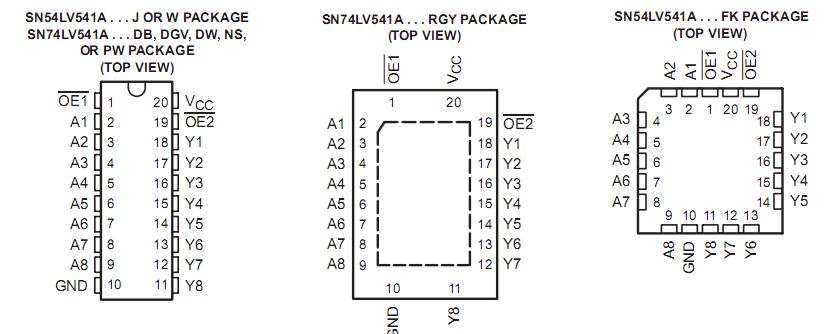

Connection Diagram


Specifications

Supply voltage range, VCC  −0.5 V to 7 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, VI (see Note 1)  −0.5 V to 7 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage range applied to any output in the high-impedance
or power-off state, VO (see Note 1)  −0.5 V to 7 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output voltage range applied in the high or low state, VO (see Notes 1 and 2)  −0.5 V to VCC + 0.5 V . . . . . .
Input clamp current, IIK (VI < 0)  −20 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output clamp current, IOK (VO < 0)  −50 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous output current, IO (VO = 0 to VCC)  ±35 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous current through VCC or GND  ±70 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package thermal impedance, JA (see Note 3): DB package  70°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): DGV package  92°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): DW package  58°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): NS package  60°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 3): PW package  83°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(see Note 4): RGY package  37°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, Tstg −65°C to 150°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


Description

The 'LV541A devices are octal buffers/drivers designed for 2-V to 5.5-V VCC operation.
