SN74LV8153N

Serial to Parallel Logic Converters Serial-To-Parallel Interface

product image

SN74LV8153N Picture
See larger image
SeekIC No. : 00448840 Detail

SN74LV8153N: Serial to Parallel Logic Converters Serial-To-Parallel Interface

SN74LV8153N Data Sheet

floor Price/Ceiling Price

US $ .73~1.28 / Piece | Get Latest Price
Part Number:
SN74LV8153N
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $1.28
  • $1.03
  • $.93
  • $.73
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Operating Supply Voltage : 3.3 V, 5 V Mounting Style : Through Hole
Package / Case : PDIP-20 Packaging : Tube

Description

Operating Supply Voltage : 3.3 V, 5 V
Mounting Style : Through Hole
Package / Case : PDIP-20
Packaging : Tube


Features:

· Single-Wire Serial Data Input
· Compatible With UART Serial-Data Format
· Up to Eight Devices (64-Bit Parallel) Can
   Share the Same Bus by Using Different
   Combinations of A0, A1, A2
· Up to 40 mA Current Drive in Open-Collector
   Mode for Driving LEDs
· Outputs Can be Configured as
   Open-Collector or Push-Pull
· Internal Oscillator and Counter for
   Automatic Data-Rate Detection
· Output Levels Are Referenced to VCC2 and
   Can Be Configured From 3 V to 12 V
· Latch-Up Performance Exceeds 250 mA Per JESD 17
· ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model (A114-A)
− 1000-V Charged-Device Model (C101)

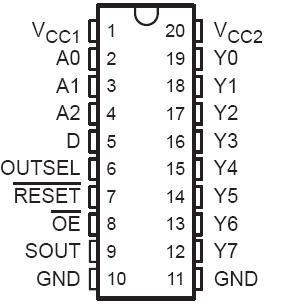

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Supply voltage range, VCC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 14.5 V
Input voltage range, VI(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Voltage range applied to any output in the high or low state, VO (SOUT)(2)(3) . . . . −0.5 V to VCC1 + 0.5 V
Voltage range applied to any output in the high-impedance
or power-off state, VO (SOUT)(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 7 V
Voltage range, applied to any output in the high or low state, VO (Y0-Y7)(2)(3) . . . . −0.5 V to VCC2 + 0.5 V
Voltage range applied to any output in the high-impedance
or power-off state, VO (Y0-Y7)(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 14.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −20 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 mA
Continuous current, IO (OUTSEL = L, Y0-Y7 = L) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 mA
Package thermal impedance, JA(4): N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69°C/W
PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . 83°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(1)The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
(2)The value of VCC is provided in the recommended operating operating condition table.
(3)The package thermal impedance is calculated in accordance with JESD 51-7.


Description

The SN74LV8153 is a serial-to-parallel data converter. It accepts serial input data and outputs 8-bit parallel data.

The SN74LV8153 automatic data-rate detection feature of the SN74LV8153 eliminates the need for an external oscillator and helps with cost and board real-estate savings.

The SN74LV8153 OUTSEL pin is used to choose between open collector and push-pull outputs. The open-collector option is suitable when this device is used in applications such as LED interface, where high drive current is required. SOUT is the output that acknowledges reception of the serial data.

To ensure the high-impedance state during power up or power down, SN74LV8153 OE should be tied to VCC1 through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.




Parameters:

Technical/Catalog InformationSN74LV8153N
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Logic TypeShift Register
FunctionSerial to Parallel
Number of Elements1 - Single
Number of Bits per Element8
Output TypeStandard
Voltage - Supply3 V ~ 5.5 V
Mounting TypeThrough Hole
Package / Case20-DIP (300 mil)
PackagingTube
Operating Temperature-40°C ~ 85°C
Drawing Number296; 4040049; N; 14, 16, 18, 20
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74LV8153N
SN74LV8153N
296 18263 ND
29618263ND
296-18263
