SN74LV86ADBG4

Features: 2-V to 5.5-V VCCOperation Max tpdof 8 ns at 5 V Typical VOLP(Output Ground Bounce)<0.8 V at VCC= 3.3 V, TA= 25°C Typical VOHV(Output VOHUndershoot)>2.3 V at VCC= 3.3 V, TA= 25°C Support Mixed-Mode Voltage Operation on All Ports Latch-Up Performance Exceeds 250 mA Per JESD 17 ESD P...

product image

SN74LV86ADBG4 Picture
See larger image
SeekIC No. : 004499198 Detail

SN74LV86ADBG4: Features: 2-V to 5.5-V VCCOperation Max tpdof 8 ns at 5 V Typical VOLP(Output Ground Bounce)<0.8 V at VCC= 3.3 V, TA= 25°C Typical VOHV(Output VOHUndershoot)>2.3 V at VCC= 3.3 V, TA= 25°C Sup...

SN74LV86ADBG4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LV86ADBG4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2-V to 5.5-V VCCOperation
Max tpdof 8 ns at 5 V
Typical VOLP(Output Ground Bounce)<0.8 V at VCC= 3.3 V, TA= 25°C
Typical VOHV(Output VOHUndershoot)>2.3 V at VCC= 3.3 V, TA= 25°C
Support Mixed-Mode Voltage Operation on All Ports
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
    −  2000-V Human-Body Model (A114-A)
    −  200-V Machine Model (A115-A)
    −  1000-V Charged-Device Model (C101)

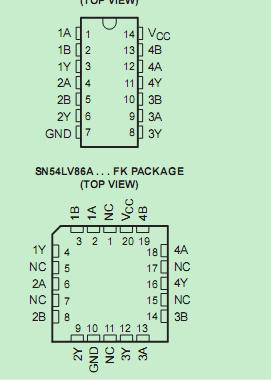

Pinout

Connection Diagram


Specifications

Supply voltage range, ...................................................VCC−0.5 V to 7 V
Input voltage range, VI(see Note 1) ......................................−0.5 V to 7 V
Voltage range applied to any output in the high-impedance
    or power-off state, VO(see Note 1) ....................................−0.5 V to 7 V
Output voltage range, VO(see Notes 1 and 2)............ −0.5 V to VCC+ 0.5 V
Input clamp current, IIK (VI< 0).................................................... −20 mA
Output clamp current, IOK(VO< 0)................................................. −50 mA
Continuous output current, IO(VO= 0 to VCC).............................. ±25 mA
Continuous current through VCCor GND .......................................±50 mA
Package thermal impedance, JA(see Note 3): D package ............86°C/W
                                                                        DB package.......... 96°C/W
                                                                        DGV package...... 127°C/W
                                                                        NS package ..........76°C/W
                                                                        PW package....... 113°C/W
Storage temperature range, Tstg....................................−65°C to 150°C



Description

The 'LV86A devices are quadruple 2-input exclusive-OR  gates designed for 2-V to 5.5-V VCC operation.

These devices LV86A  contain four independent 2-input exclusive-OR gates. They perform the Boolean function

A common application of LV86A  is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
