Product Details

Description



Features:

•Operate From 1.65V to 5V
•Maxtpd of 2.6ns at 5V
•Inputs and Open-Drain Outputs Accept Voltages up to 5.5V
•Latch-Up Performance Exceeds 250mA Per JESD 17

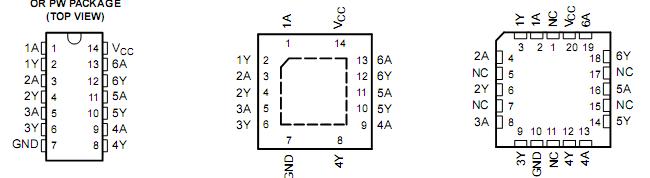

Pinout

Connection Diagram


Specifications

  MIN MAX UNIT
VCC Supply voltage range -0.5 6.5 V
V1 Input voltage range(2) -0.5 6.5 V
VO Output voltage range -0.5 6.5 V
IIK Input clamp current VI<0   -50 mA
IOK Output clamp current VO<0   -50 mA
IO Continuous output current   ±50 mA
Continuous current through VCC or GND   ±100 mA
JA Package thermal impedance D package(3)   86 °C/W
DB package(3)   96
DGV package(3)   127
NS package(3)   76
PW package(3)   113
RGY package(4)   47
Tstg Storage temperature range -65 150 °C
