MFG:Texas Instruments Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Texas Instruments
Descriptions: IC BUS BUFF TRI-ST QD 14SOICN
5000
.11700
585.00

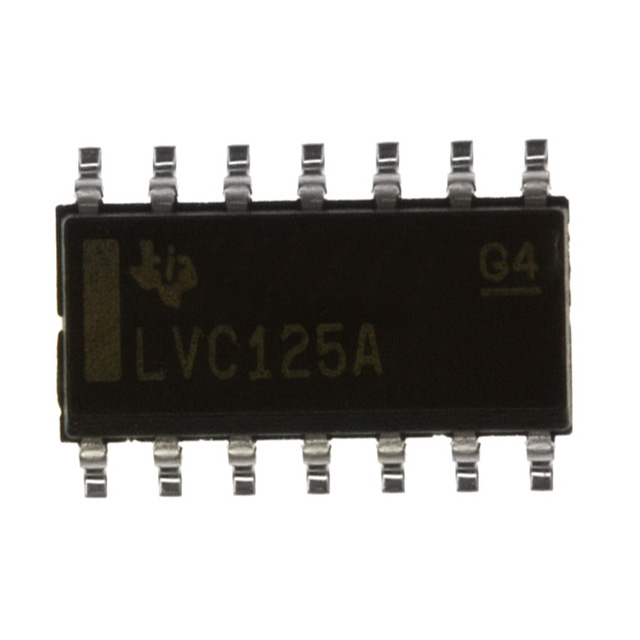

| Technical/Catalog Information | SN74LVC125ADRE4 |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Logic Type | Line Driver, Non-Inverting |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 1 |
| Number of Elements | 4 - Quad |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65 V ~ 3.6 V |
| Current - Output High, Low | 24mA, 24mA |
| Drawing Number | 296; 4040047-3; D; 14 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SN74LVC125ADRE4 SN74LVC125ADRE4 |
SN7000
PDF/DataSheet Download
IC BUS BUFF TRI-ST QD 14SOICN
IC BUS BUFF TRI-ST QD 14SOICN
IC BUS BUFF TRI-ST QD 14SSOP
IC BUS BUFF TRI-ST QD 14SSOP

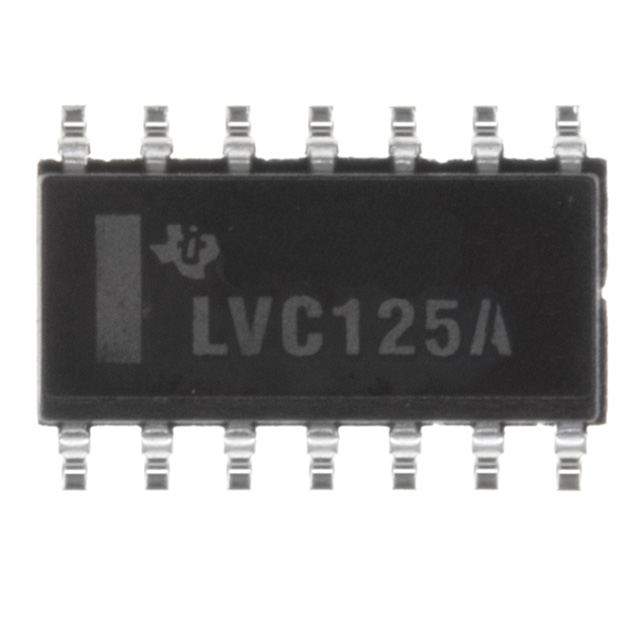

The SN74LVC125AD is designed as a quadruple bus buffer gate for 1.65V to 3.6V Vcc operation. It features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable input is high.SN74LVC125AD has seven features. (...
This quadruple bus buffer gate SN74LVC125Ais designed for 1.65-V to 3.6-V VCC operation.The SN74LVC125A features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high.To ensure the high-im...
