SN74LVC139A

Features: Operates From 1.65 V to 3.6 VInputs Accept Voltages to 5.5 VMax tpd of 6.2 nsTypical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°CTypical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25°CLatch-Up Performance Exceeds 250 mA Per JESD 17ESD Protection Exceeds JE...

product image

SN74LVC139A Picture
See larger image
SeekIC No. : 004499217 Detail

SN74LVC139A: Features: Operates From 1.65 V to 3.6 VInputs Accept Voltages to 5.5 VMax tpd of 6.2 nsTypical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°CTypical VOHV (Output VOH Undershoot)>2...

SN74LVC139A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVC139A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Operates From 1.65 V to 3.6 V
 Inputs Accept Voltages to 5.5 V
 Max tpd of 6.2 ns
 Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°C
 Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25°C
 Latch-Up Performance Exceeds 250 mA Per JESD 17
 ESD Protection Exceeds JESD 22
−  2000-V Human-Body Model (A114-A)
−  200-V Machine Model (A115-A)
−  1000-V Charged-Device Model (C101)


Pinout

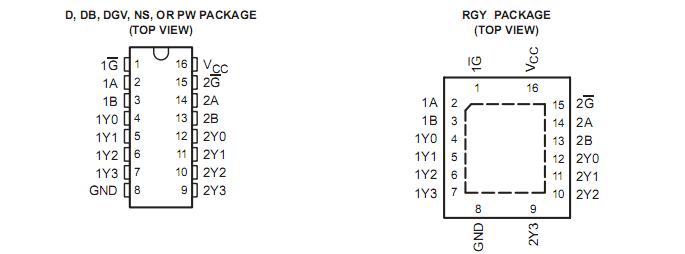

Connection Diagram


Specifications

Supply voltage range,    . . . . . . . . . . . .  . . . . . . . . . . . . . .  . . . . . . . . . .  . . . . . .VCC  −0.5 V to 6.5 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . .  . . . . . . . . . . . . . .  . . . . . .  . . . .−0.5 V to 6.5 V
Output voltage range, VO (see Notes 1 and 2) . . . . . . . . . . . . . . . . . .  . . . . . . −0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0)  . . . . . . . . . . . . . .  . . . . . . . . . . . . . .  . . . . . . . .. . . . . . .  . .  −50 mA
Output clamp current, IOK (VO < 0)   . . . . . . . . . . . . . .  . . . . . . . . . . . . . .  . . . . . . . . . . . . . .  −50 mA
Continuous output current, IO   . . . . . . . . . . . . . .  . . . . . . . . . . . . . .  . . . . . .. . . . . . . . . . . .  .±50 mA
Continuous current through VCC or GND   . . . . . . . . . . . . . .  . . . . . . . . . . . . . .  . . . . . . . . . . ±100 mA
Package thermal impedance, JA (see Note 3): D package   . . . . . . . . . . . . . .  . . . . . . . .. . . . .73°C/W
                                                    (see Note 3): DB package  . . . . . . . . . . . . . .  . . .  . . . . . . .  . 82°C/W
                                                    (see Note 3): DGV package  . . . . . . . . . . . . . .  . . .  . . . . . .  120°C/W
                                                    (see Note 3): GQN/ZQN package  . . . . . . . . . . . . . . .. . .  . . . 78°C/W
                                                    (see Note 3): NS package . . . . . . . . . . . . . .  . . .  . . . . ..  . . . 64°C/W
                                                    (see Note 3): PW package   . . . . . . . . . . . . . .  . . . . . . . . . ..108°C/W
                                                    (see Note 4): RGY package   .. . . . . . . . . . . . . .  . . .  . . . . . . .39°C/W
Storage temperature range, Tstg  . . . . . . . . . . . . . .  . . . . . . . . . . . . . .  . . . . . . . . .. . −65°C to 150°C
