Purchase SN74LVC162244, In-stock SN74LVC162244 From SeekIC.
Package Cooled:98+ D/C:SSOP
Part Number: SN74LVC162244
Package Cooled: 98+
D/C: SSOP
Description: This 16-bit buffer/driver is designed for 2.7-V to 3.6-V VCC...
- Table of contents:
SN74LVC162244
-
Suppliers
DataSheet
General Description
SN74LVC162244 General Description
This 16-bit buffer/driver is designed for 2.7-V to 3.6-V VCC operation.
The SN74LVC162244 is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical active-low output-enable (OE) inputs. The outputs, which are designed to sink up to 12 mA, include 26-Ω resistors to reduce overshoot and undershoot.
Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
The SN74LVC162244 is characterized for operation from 40°C to 85°C.
SN74LVC162244 Maximum Ratings
Supply voltage range, VCC. . . . . . . . . .. . . . . .. . . . . . . . . . . . . -0.5 V to 4.6V
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ... ... .. . -0.5 V to 4.6 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . ... . -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 ) .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Onput clamp current, IOK (VO < 0 ). . . .. . . . . .. . . . . .. . . . . .. . . . . . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . . ... ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package . . . . . .. . .. . 1W
DL package . . . . . . . ...1.4/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . 65°C to 150°C
Input voltage range, VI(see Note 1). . . . . . . . . .. . . ... ... .. . -0.5 V to 4.6 V
Onput voltage range, VO(see Note 1 and 2). . . . . . . ... . -0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 ) .. . . . . . . . . .. . . . . .. . . . . .. . . . . . . .-50mA
Onput clamp current, IOK (VO < 0 ). . . .. . . . . .. . . . . .. . . . . .. . . . . . . . -50mA
Continuous output current,IO .. . . . . .. . . . . .. . . . . .. . . . . .. . . ... ... . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . .. . . . . .. . . .±100mA
Package thermal impedance, JA (see Note 3): DGG package . . . . . .. . .. . 1W
DL package . . . . . . . ...1.4/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . 65°C to 150°C
SN74LVC162244 Features
*Member of the Texas Instruments Widebus™Family
*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
*Output Ports Have Equivalent 26-Ω Series
Resistors, So No External Resistors Are Required
*Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
*Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
*ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds
200 V Using Machine Model (C = 200 pF, R = 0)
*Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17
*Bus Hold on Data Inputs Eliminates the
Need for External Pullup/Pulldown Resistors
*Package Options Include Plastic 300-mil
Shrink Small-Outline (DL) and Thin Shrink
Small-Outline (DGG) Packages
*EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process
*Output Ports Have Equivalent 26-Ω Series
Resistors, So No External Resistors Are Required
*Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
*Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
*ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds
200 V Using Machine Model (C = 200 pF, R = 0)
*Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17
*Bus Hold on Data Inputs Eliminates the
Need for External Pullup/Pulldown Resistors
*Package Options Include Plastic 300-mil
Shrink Small-Outline (DL) and Thin Shrink
Small-Outline (DGG) Packages

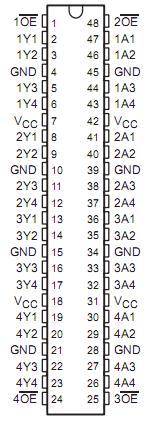

SN74LVC162244 Connection Diagram
SN74LVC162244
