SN74LVC162244AGQLR

Polarity : Non-Inverting
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Packaging : Reel
Supply Voltage - Min : 1.65 V
Number of Output Lines : 3
Supply Voltage - Max : 3.6 V
Number of Input Lines : 16
Package / Case : BGA-56


Features:

 Member of the Texas Instruments Widebus Family
 Operates From 1.65 V to 3.6 V
 Inputs Accept Voltages to 5.5 V
Max tpd of 4.4 ns at 3.3 V
 Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
 Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
 Supports Mixed-Mode Signal Operation on
All Ports (5-V Input/Output Voltage With 3.3-V VCC)
Output Ports Have Equivalent 26-Ω Series
Resistors, So No External Resistors Are Required
 Ioff Supports Partial-Power-Down Mode Operation
 Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
 ESD Protection Exceeds JESD 22
    −  2000-V Human-Body Model (A114-A)
    −  1000-V Charged-Device Model (C101)

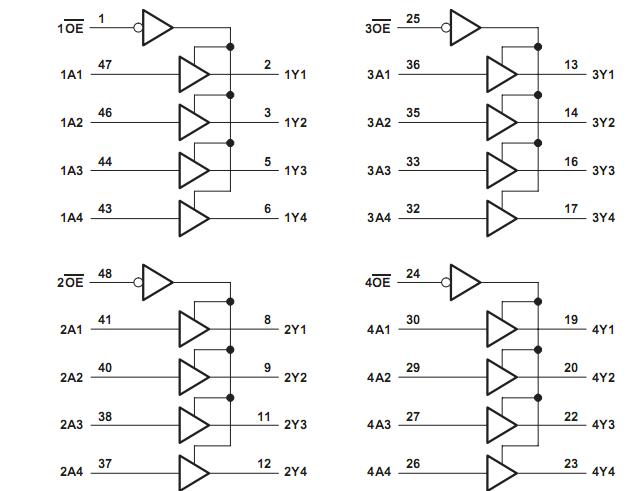

Pinout




Specifications

Supply voltage range, VCC  −0.5 V to 6.5 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, VI (see Note 1)  −0.5 V to 6.5 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage range applied to any output in the high-impedance or power-off state, VO
(see Note 1)  −0.5 V to 6.5 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage range applied to any output in the high or low state, VO
(see Notes 1 and 2)  −0.5 V to VCC + 0.5 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input clamp current, IIK (VI < 0)  −50 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output clamp current, IOK (VO < 0)  −50 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous output current, IO  ±50 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous current through each VCC or GND  ±100 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package thermal impedance, JA (see Note 3): DGG package  70°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DGV package  58°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DL package  63°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GQL/ZQL package  42°C/W . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, Tstg −65°C to 150°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. The value of VCC is provided in the recommended operating conditions table.
3. The package thermal impedance is calculated in accordance with JESD 51-7.

Description

This SN74LVC162244A 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.
The SN74LVC162244A is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as four 4-bit
buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical active-low output-enable
(OE) inputs.
The outputs, which are designed to sink up to 12 mA, include equivalent 26-Ω resistors to reduce overshoot
and undershoot.


Parameters:

Technical/Catalog Information	SN74LVC162244AGQLR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Logic Type	Line Driver, Non-Inverting
Package / Case	56-BGA MICROSTAR JUNIOR
Packaging	Digi-Reel?
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	4 - Quad
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	1.65 V ~ 3.6 V
Current - Output High, Low	12mA, 12mA
Drawing Number	296; 4200583-3; GQL; 56
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	SN74LVC162244AGQLR SN74LVC162244AGQLR 296 13240 6 ND 296132406ND 296-13240-6
