Part Number: SN74LVC16244A



MFG: 64

Package Cooled: TI



Description: This 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.The SN74L...


Urgent Purchase

SN74LVC16244A General Description


This 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.

The SN74LVC16244A is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

SN74LVC16244A Maximum Ratings

  MIN    MAX UNIT
VCC Supply voltage range
 0.5   6.5
V

VI Input voltage range(2)
 0.5   6.5
V

VO Voltage range applied to any output in the high-impedance or power-off state(2)
 0.5   6.5
V

VO Voltage range applied to any output in the high or low state(2)(3)		 0.5 V   + 0.5
V
IIK Input clamp current
 VI < 0
50
mA
IOK Output clamp current
 VO < 0
50
mA
IO Continuous output current
±50
mA
Continuous current through each VCC or GND

±100
mA

JA Package thermal impedance(4)		 DGG package
70
/W
DGV package
58
DL package
63
GQL package
42
GRD/ZRD package
36
Tstg Storage temperature range
 65      150
°C

SN74LVC16244A Features

* Member of the Texas Instruments Widebus(TM) Family
* Operates From 1.65 V to 3.6 V
* Inputs Accept Voltages to 5.5 V
* Max tpd of 4.1 ns at 3.3 V
* Typical VOLP (Output Ground Bounce) < 0.8 V
   at VCC = 3.3 V, TA = 25
* Typical VOHV (Output VOH Undershoot) > 2 V
   at VCC = 3.3 V, TA  = 25
* Ioff Supports Partial-Power-Down Mode Operation
* Supports Mixed-Mode Signal Operation on All
   Ports (5-V Input/Output Voltage With 3.3-V VCC )
* Latch-Up Performance Exceeds 250 mA Per JESD 17
* ESD Protection Exceeds JESD 22
   2000-V Human-Body Model (A114-A)
   1000-V Charged-Device Model (C101)

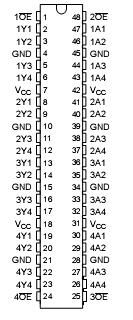

SN74LVC16244A Connection Diagram

SN74LVC16244A Connection Diagram
