Purchase SN74LVC1G02DRLRG4, In-stock SN74LVC1G02DRLRG4 From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

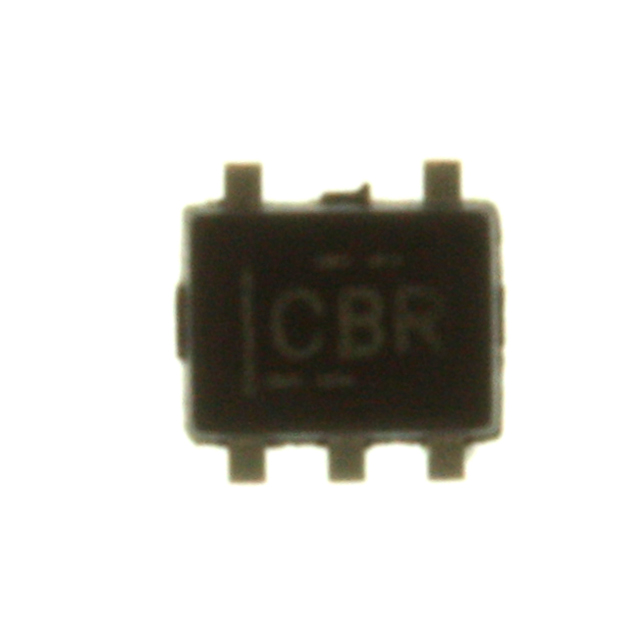

SN74LVC1G02DRLRG4 Product Image

SN7 Series Datasheet download

Five Points

Part Number: SN74LVC1G02DRLRG4

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC SNGL 2IN POS-NOR GATE SOT-5

Price Break

4000

Unit Price

.11050

Extended Price

442.00

(All prices are in USD) Prices for reference only
Urgent Purchase

SN74LVC1G02DRLRG4 General Description

IC SNGL 2IN POS-NOR GATE SOT-5

SN74LVC1G02DRLRG4 Parameters

Technical/Catalog InformationSN74LVC1G02DRLRG4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Package / CaseSOT-553, SOT-5
Logic TypeNOR Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low32mA, 32mA
Supply Voltage1.65 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply1.65 V ~ 5.5 V
Drawing Number296; 4205622-2/D; DRL; 5
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74LVC1G02DRLRG4
SN74LVC1G02DRLRG4

SN74LVC1G02DRLRG4 datasheet

SN74LVC1G02DRLRG4
PDF/DataSheet Download
