SN74LVC257A

PinoutSpecificationsSupply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 6.5 VInput voltage range, VI(see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 6.5 VOutput voltag...

product image

SN74LVC257A Picture
See larger image
SeekIC No. : 004499292 Detail

SN74LVC257A: PinoutSpecificationsSupply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 6.5 VInput voltage range, VI(see Note 1). . . . ...

SN74LVC257A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVC257A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

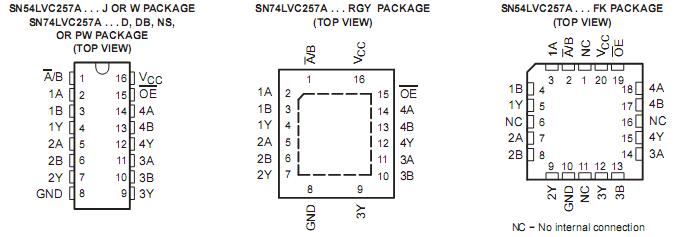

Connection Diagram


Specifications

Supply voltage range, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 6.5 V
Input voltage range, VI (see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −0.5 V to 6.5 V
Output voltage range, VO(see Notes 1 and 2). . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ......................... −50 mA
Output clamp current, IOK (VO < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −50 mA
Continuous output current, IO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Continuous current through VCC or GND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±100 mA
Package thermal impedance, JA(see Note 3):D package. . . . . . . . . . . . . . . . . . . . . . . . . . .. 73°C/W
                                                    (see Note 3):DB package. . . . . . . . . . . . . . . . . . . . . . . . . .. 82°C/W
                                                    (see Note 3):NS package. . . . . . . . . . . . . . . . . . . . . . . . . . .64°C/W
                                                    (see Note 3):PW package . . . . . . . . . . . . . . . . . . . . . . . . ..108°C/W
                                                    (see Note 4):RGY package. . . . . . . . . . . . . . . . . . . . . . . . . . 39°C/W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−65°C to 150°C



Description

These quadruple 2-line to 1-line data selectors/multiplexers LVC257A are designed for 1.65-V to 3.6-V VCC operation.

The 'LVC257A devices are designed to multiplex signals from 4-bit data sources to 4-output data lines in bus-organized systems. The 3-state outputs do not load the data lines when the output-enable (OE</a>) input is at a high logic level.
