SN74LVC32A

Features: ` Operate From 1.65 V to 3.6 V` Specified From 40°C to 85°C,40°C to 125°C, and 55°C to 125°C` Inputs Accept Voltages to 5.5 V` Max tpd of 3.8 ns at 3.3 V` Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C` Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V,...

product image

SN74LVC32A Picture
See larger image
SeekIC No. : 004499326 Detail

SN74LVC32A: Features: ` Operate From 1.65 V to 3.6 V` Specified From 40°C to 85°C,40°C to 125°C, and 55°C to 125°C` Inputs Accept Voltages to 5.5 V` Max tpd of 3.8 ns at 3.3 V` Typical VOLP (Output Ground Bounc...

SN74LVC32A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVC32A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operate From 1.65 V to 3.6 V
` Specified From 40°C to 85°C,40°C to 125°C, and 55°C to 125°C
` Inputs Accept Voltages to 5.5 V
` Max tpd of 3.8 ns at 3.3 V
` Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
` Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
` Latch-Up Performance Exceeds 250 mA Per JESD 17
` ESD Protection Exceeds JESD 22
    2000-V Human-Body Model (A114-A)
    200-V Machine Model (A115-A)
    1000-V Charged-Device Model (C101)


Pinout

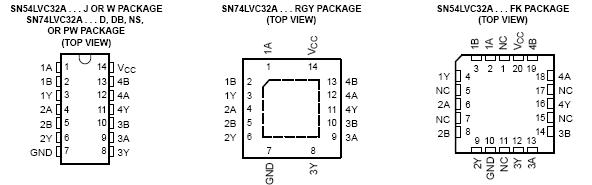

Connection Diagram


Specifications

  MIN MAX UNIT
VCC                  Supply voltage range 0.5 6.5 V
VI                      Input voltage range(2) 0.5 6.5 V
VO                   Output voltage range(2) (3) 0.5 VCC + 0.5 V
IIK                    Input clamp current VI < 0   50 mA
IOK                  Output clamp current VO < 0   50 mA
IO                   Continuous output current   ±50 mA
Continuous current through VCC or GND   ±100 mA
JA              Package thermal impedance D package (4)   86 °C/W
DB package(4)   96
NS package(4)   76
PW package(4)   113
RGY package(5)   47
Tstg             Storage temperature range 65 150 °C
Ptot             Power dissipation   500 mW

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and  functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The value of VCC is provided in the recommended operating conditions table.
(4) The package thermal impedance is calculated in accordance with JESD 51-7.
(5) The package thermal impedance is calculated in accordance with JESD 51-5.
(6) For the D package: above 70°C, the value of Ptot derates linearly with 8 mW/K.
(7) For the DB, DGV, NS, and PW packages: above 60°C, the value of Ptot derates linearly with 5.5 mW/K.


Description

The SN54LVC32A quadruple 2-input positive-OR gate is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC32A quadruple 2-input positive-OR gate is designed for 1.65-V to 3.6-V VCC operation.
The 'LVC32A devices perform the Boolean function Y = A+B or Y = A • B in positive logic.
