SN74LVC3GU04

Features: ` Available in the Texas Instruments NanoStar™ and NanoFree™ Packages` Supports 5-V VCC Operation` Inputs Accept Voltages to 5.5 V` Max tpd of 3.9 ns at 3.3 V` Low Power Consumption, 10-mA Max ICC` ±24-mA Output Drive at 3.3 V` Typical VOLP (Output Ground Bounce) < 0.8 V a...

product image

SN74LVC3GU04 Picture
See larger image
SeekIC No. : 004499337 Detail

SN74LVC3GU04: Features: ` Available in the Texas Instruments NanoStar™ and NanoFree™ Packages` Supports 5-V VCC Operation` Inputs Accept Voltages to 5.5 V` Max tpd of 3.9 ns at 3.3 V` Low Power Consum...

SN74LVC3GU04 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVC3GU04
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Available in the Texas Instruments NanoStar™ and NanoFree™ Packages
` Supports 5-V VCC Operation
` Inputs Accept Voltages to 5.5 V
` Max tpd of 3.9 ns at 3.3 V
` Low Power Consumption, 10-mA Max ICC
` ±24-mA Output Drive at 3.3 V
` Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
` Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
` Unbuffered Outputs
` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
` ESD Protection Exceeds JESD 22
  2000-V Human-Body Model (A114-A)
  200-V Machine Model (A115-A)
  1000-V Charged-Device Model (C101)


Pinout

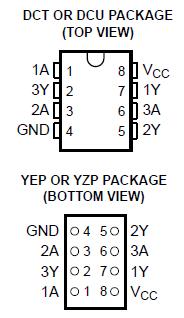

Connection Diagram


Specifications

    MIN MAX UNIT
VCC Supply voltage range 0.5 6.5 V
VI Input voltage range(2) 0.5 6.5 V
VO Output voltage range(2) (3) 0.5 VCC + 0.5 V
IIK Input clamp current VI< 0   50 mA
IOK Output clamp current VO< 0   50 mA
IO Continuous output current   ±50 mA
  Continuous current through VCC or GND   ±100 mA
JA Package thermal impedance(4) DCT package   220 °C/W
DCU package   227
YEP/YZP package   102
Tstg Storage temperature range 65 150 °C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
(3) The value of VCC is provided in the recommended operating conditions table.
(4) The package thermal impedance is calculated in accordance with JESD 51-7.


Description

This triple inverter is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC3GU04 contains three inverters with unbuffered outputs and performs the Boolean function Y =A.

NanoStar™ and NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
