SN74LVC861

Features: • EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C•Latch-Up Performance Exceeds 250 mA Per JEDEC Standa...

product image

SN74LVC861 Picture
See larger image
SeekIC No. : 004499373 Detail

SN74LVC861: Features: • EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C• Typical VOHV (Output VOH Under...

SN74LVC861 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVC861
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
• Latch-Up Performance Exceeds 250 mA Per JEDEC Standard JESD-17
• Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) Packages


Pinout

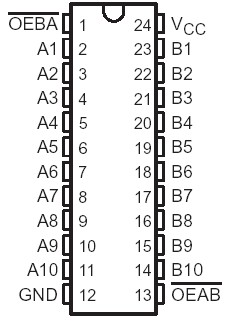

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI: (except I/O ports) (see Note 1) . . . . . . . . . . . .. . . .  . . . . ..0.5 V  to 6.5 V
                                       (I/O ports) (see Notes 1 and 2). . . . . . . . . . . . . . . .   0.5 V to VCC + 0.5 V
Output voltage range, VO (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . .  . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 50 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Maximum power package dissipation at TA = 55°C (in still air)(see Note 3):DB package  . .  .  0.65W
                                                                                                                     DW package . .  .  .1.7 W
                                                                                                                     PW package . .. .  . 0.7 W
Storage temperature range ,Tstg . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .65°C to 150°C


Description

This 10-bit bus transceiver SN74LVC861 is designed for 2.7-V to 3.6-V VCC operation.

The SN74LVC861 is designed for asynchronous communication between data buses. The control-function implementation allows for maximum flexibility in timing.

This device SN74LVC861 allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic levels at the output-enable (OEAB and OEBA) inputs.

To ensure the high-impedance state during power up or power down, SN74LVC861 OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.


The SN74LVC861 is characterized for operation from 40°C to 85°C.
