Product Details

Description



Features:

EPICTM (Enhanced-Performance Implanted
   CMOS) Submicron Process
ESD Protection Exceeds 2000 V Per
   MIL-STD-883, Method 3015; Exceeds 200 V
   Using Machine Model (C = 200 pF, R = 0)
Latch-Up Performance Exceeds 250 mA Per
   JESD 17
Typical VOLP (Output Ground Bounce)
   < 0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot)
   > 2 V at VCC = 3.3 V, TA = 25°C
Inputs Accept Voltages to 5.5 V
Package Options Include Plastic
   Small-Outline (D), Shrink Small-Outline
   (DB), Thin Very Small-Outline (DGV), and
   Thin Shrink Small-Outline (PW) Packages,
   Ceramic Flat (W) Package, Ceramic Chip
   Carriers (FK), and DIPs (J)

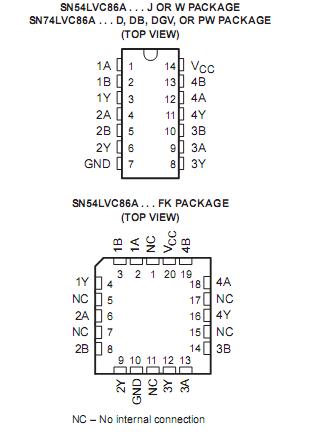

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 6.5 V
Input voltage range, VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(see Note 1) 0.5 V to 6.5 V
Output voltage range, VO (see Notes 1 and 2). . . . . . . . . . . . .. . . . 0.5 V to VCC + 0.5 V
Input clamp current, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IIK (VI < 0) 50 mA
Output clamp current, IOK (VO < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50 mA
Continuous output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±100 mA
Package thermal impedance, JA(see Note 3):D package . . . . . . . . . . . . . . . . . . .127°C/W
DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158°C/W
DGV package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182°C/W
PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


‡ Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditi ons" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES:1.The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed. 2.The value of VCC is provided in the recommended operating conditions table.3.The package thermal impedance is calculated in accordance with JESD 51.


Description

The SN54LVC86A quadruple 2-input exclusive-OR gate is designed for 2.7-V to 3.6-V VCC operation and the SN74LVC86A quadruple 2-input exclusive-OR gate is designed for 1.65-V to 3.6-V  VCC operation.

The SN54LVC86A devices perform the Boolean function Y = A  B or Y = A B + A B  in positive logic.

A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.

SN54LVC86A Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.

The SN54LVC86A is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74LVC86A is characterized for operation from 40°C to 85°C.
