Product Details

Description



Features:

 Member of the Texas Instruments WidebusTM Family
 EPICTM (Enhanced-Performance Implanted CMOS) Submicron Process
 Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
 Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25°C
 Power Off Disables Outputs, Permitting Live Insertion
 Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
 Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC)
 Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages


Pinout

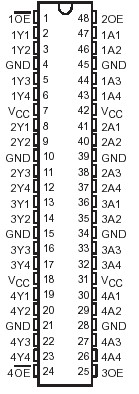

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 6.5V
Input voltage range, VI (see Note 1) . . . . . . . . . . . .. . . .  . . . . .. . . . . . . . . . .  . . . . .0.5 V to 6.5 V
Voltage range applied to any output in the high-impedance or power-off state, VO
    (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 6.5 V
Voltage range applied to any output in the high or low state, VO
    (see Notes 1 and 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 50 mA
Output clamp current, IOK (VO < 0 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . -50 mA
Continuous output current, IO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Package thermal impedance, JA (see Note 3): DGG package . . . . . . . . . . . . . . . . . . . . . . .89°C/W
                                                                          DL package  . . . . . . . . . . . . . . . . .  .. . . .  .. .94°C/W
Storage temperature range ,Tstg . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  . . 65°C to 150°C


Description

This 16-bit buffer/driver SN74LVCH16241A is designed for 1.65-V to 3.6-V VCC operation.

The SN74LVCH16241A is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers,
and bus-oriented receivers and transmitters.

This device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer, and provides true outputs and complementary output-enable
(OE and OE) inputs.

To ensure the high-impedance state during power up or power down, SN74LVCH16241A OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

SN74LVCH16241A Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

The SN74LVCH16241A is characterized for operation from 40°C to 85°C.
