Product Details

Description

Features:

* Member of the Texas Instruments
   WidebusE Family
* EPICE (Enhanced-Performance Implanted
   CMOS) Submicron Process
*Typical V_OLP (Output Ground Bounce)
< 0.8 V at V_CC = 3.3 V, T_A = 25
* Typical V_OHV (Output VOH Undershoot)
   > 2 V at V_CC = 3.3 V, T_A= 25
* Supports Mixed-Mode Signal Operation on
   All Ports (5-V Input/Output Voltage With
   3.3-V V_CC)
* Power Off Disables Inputs/Outputs,
   Permitting Live Insertion
* ESD Protection Exceeds 2000 V Per
   MIL-STD-883, Method 3015; Exceeds 200 V
   Using Machine Model (C = 200 pF, R = 0)
* Latch-Up Performance Exceeds 250 mA Per
   JESD 17
* Bus Hold on Data Inputs Eliminates the
   Need for External Pullup/Pulldown
   Resistors
* All Outputs Have Equivalent 26-W Series
   Resistors, So No External Resistors Are
Required
* Package Options Include Plastic 300-mil
Shrink Small-Outline (DL) and Thin Shrink
Small-Outline (DGG) Packages

Pinout

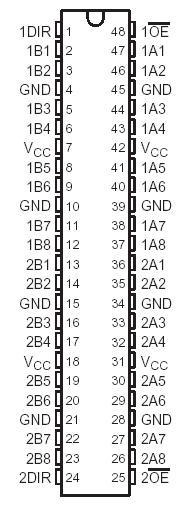

Connection Diagram

Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . . . . .-0.5 V to 6.5 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.5 V to 6.5 V
Voltage range applied to any output in the high-impedance or power-off state, VO
   (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .-0.5 V to 6.5 V
Voltage range applied to any output in the high or low state, VO
   (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-0.5 V to V_CC + 0.5 V
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. . . . . . . . . . . . .-50 mA
Output clamp current, I_OK (V_O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .-50 mA
Continuous output current, I_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Continuous current through each V_CC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . . . .±100 mA
Package thermal impedance, _JA(see Note 3): DGG package . . . . . . . . . . . . . . . . . . . . .......... . . . . . . .70/W
                                                                          DGV package . . . . . . . . . . . . . . . . . . . . . . . .... . . . . . . .58/W
                                                                          DL package . . . . . . . . . . . . . . . . . . . . . . . ..... . . . . . . . .63/W
                                                                          GQL/ZQL package . . . . . . . . . . . . . . . . . . ....... . . . . . . .42/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .. .. . .-65 to 150

Description

This 16-bit (dual-octal) noninverting bus transceiver SN74LVCHR16245A is designed for 1.65-V to 3.6-V V_CC operation.

The SN74LVCHR16245A is designed for asynchronous communication between data buses. The control-function implementation minimizes external-timing requirements.

This device SN74LVCHR16245A can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can disable the device so that the buses are effectively isolated.

SN74LVCHR16245A All outputs, which are designed to sink up to 12 mA, include equivalent 26-series resistors to reduce overshoot and undershoot.

To ensure the high-impedance state during power up or power down, SN74LVCHR16245A OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

SN74LVCHR16245A Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN74LVCHR16245A is characterized for operation from 40 to 85.
