Product Details

Description



Features:

 State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low-Static Power Dissipation
 Member of the Texas Instruments WidebusTM Family
 Supports Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)
 Supports Unregulated Battery Operation Down to 2.7 V
 Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
 Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
 Supports Live Insertion
 Distributed VCC and GND Pin Configuration
 Flow-Through Architecture Optimizes PCB Layout
 Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages Using 25-mil Center-to-Center Spacings




Pinout

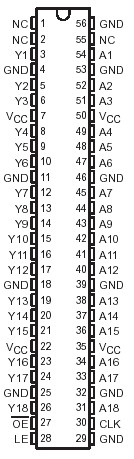

Connection Diagram


Specifications

Supply voltage range, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Voltage range applied to any output in the high state or power-off state, VO (see Note 1) . . . .0.5 V to 7 V
Current into any output in the low state, IO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128 mA
Current into any output in the high state, IO (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 50 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 3): DGG package  . . . . . . . . . . . . . . . . . . .1 W
                                                                                                         DL package . . . . . . . . . . . . . . .  .. . . .1.4 W
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ..40°C to 85°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .65°C to 150°C


Description

The SN74LVT16835 is an 18-bit universal bus driver designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

Data flow from A to Y is controlled by the output-enable (OE) input. This device SN74LVT16835 operates in the transparent mode when the latch-enable (LE) input is high. The A data is latched if the clock (CLK) input is held at a high or low logic level. If LE is low, the A-bus data is stored in the latch/flip-flop on the low-to-high transition of the clock. When OE is high, the outputs are in the high-impedance state.

Active bus-hold circuitry is provided by SN74LVT16835 to hold unused or floating data inputs at a valid logic level.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver SN74LVT16835.

The SN74LVT16835 is available in TI's shrink small-outline (DL) and thin shrink small-outline (DGG) packages, which provide twice the input/output (I/O) pins and functionality of standard small-outline packages in the same printed circuit board area.

The SN74LVT16835 is characterized for operation from 40°C to 85°C.
