Product Details

Description

Application

Audio                                www.ti.com/audio
Automotive                      www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                  www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless

Pinout

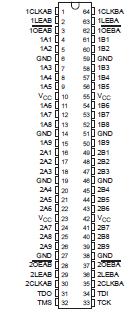

Connection Diagram

Specifications

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . .. . . . . 0.5 V to 7 V
Voltage range applied to any output in the high or power-off state,
V_O (see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Current into any output in the low state,
I_O: SN54LVT18512. . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . 96 mA
      SN54LVT182512 (A port or TDO).  . . . . . . .. . . . . . . . . .. . . . . 96 mA
      SN54LVT182512 (B port) . . . . . . . . . . . . .. . . . . . . . . . . . .. . 30 mA
      SN74LVT18512 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
     SN74LVT182512 (A port or TDO). . . . . . . . . . . . . . . . . . . . . . 128 mA
      SN74LVT182512 (B port) . . . . . . . .. . . . . . . . . . . . . . . . . . . . . .30 mA
Current into any output in the high state,
I_O (see Note 2): SN54LVT18512. . . . . . . . . . . . . . . . . . . . . . . . . . 48 mA
                           SN54LVT182512 (A port or TDO) . . . . . . .. . . . . . 48 mA
                           SN54LVT182512 (B port) . . . .. . .. . . . . . . . . . . 30 mA
                           SN74LVT18512 . . . . . . . . . . . . .. . . . . . . . . . . . . 64 mA
                           SN74LVT182512 (A port or TDO) . . . . .. . . . . . . 64 mA
                           SN74LVT182512 (B port) . . .. . . . . . . .. . . . . . . . 30 mA
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . . .    . 50 mA
Output clamp current, I_OK (V_O< 0) . . . . . . . . . . . . . . . . . . .. .. . 50 mA
Package thermal impedance, _JA (see Note 3): DGG package. . . 73°C/W
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings can be exceeded if the input and output clamp-current ratings are observed.
             2. This current only flows when the output is in the high state and V_O > V_CC.
             3. The package thermal impedance is calculated in accordance with JESD51.

Description

The SN74LVT18512 and 'LVT182512 scan test devices with 18-bit universal bus transceivers are members of the Texas Instruments SCOPEE^TM testability integrated-circuit family. This family of devices supports IEEE Std 1149.1-1990 boundary scan to facilitate testing of complex circuit-board assemblies. Scan access to the test circuitry is accomplished via the 4-wire test access port (TAP) interface.

Additionally, these devices SN74LVT18512 are designed specifically for low-voltage (3.3-V) V_CCoperation, but with the capability to provide a TTL interface to a 5-V system environment.
