Features:

 State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low-Static Power Dissipation
 Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)
 Support Unregulated Battery Operation Down to 2.7 V
 Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
 ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
 Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
 Bus-Hold Data Inputs Eliminate the Need for External Pullup Resistors
 Support Live Insertion
 Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) Packages, Ceramic Chip Carriers (FK), and Ceramic (JT) DIPs




Pinout

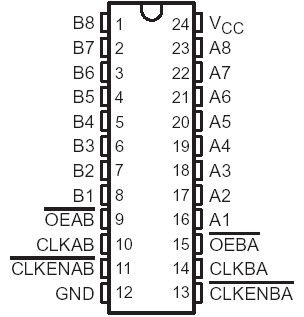

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 0.5 V to4.6 V
Input voltage range, VI  (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . 0.5 V to 7 V
Voltage applied to any output in the high state or power-off state, VO (see Note 1). . 0.5 V to 7 V
Current into any output in the low state, IO: SN54LVT2952 . . . . . . . . . . .. . . . . . . . . . . . ..   . .96 mA
                                                                       SN74LVT1952 . . . . . . . . . . . . . . . . . . . .  . . ..   .128 mA
Current into any output in the high state, IO (see Note 2): SN54LVT2952 . . . . . . . . . .. . . . . . .48 mA
                                                                                             SN74LVT2952  . . . . . .  .  . . . . .. . .64 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . .. .50 mA
Output clamp current, IOK (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Maximum power dissipation at TA = 55°C (in still air) (see Note 3): DB package  . . . .  . . . .  . . 0.65 W
                                                                                                         DW package  . . . .. . . . .  .. .1.7 W
                                                                                                         PW package  . . . . . . . . . . . .0.7 W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .. . . .65°C to 150°C


Description

These octal bus transceivers and registers SN74LVT2952 are designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

The SN74LVT2952 consist of two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Data on the A or B bus is stored in the registers on the low-to-high transition of the clock (CLKAB or CLKBA) input provided that the clock-enable (CLKENAB or CLKENBA) input is low. Taking the output-enable (OEAB or OEBA) input low accesses the data on either port.

Active bus-hold circuitry is provided by SN74LVT2952 to hold unused or floating data inputs at a valid logic level.

About SN74LVT2952,To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The SN74LVT2952 is available in TI's shrink small-outline package (DB), which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area.

The SN54LVT2952 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74LVT2952 is characterized for operation from 40°C to 85°C.
