Features:

` Members of Texas Instruments (TI) Broad
  Family of Testability Products Supporting
  IEEE Std 1149.1-1990 (JTAG) Test Access
  Port (TAP) and Boundary-Scan Architecture
` Provide Built-In Access to IEEE Std 1149.1
  Scan-Accessible Test/Maintenance
  Facilities at Board and System Levels
` While Powered at 3.3 V, the TAP Interface is
  Fully 5-V Tolerant for Mastering Both 5-V
  and/or 3.3-V IEEE Std 1149.1 Targets
` Simple Interface to Low-Cost 3.3-V
  Microprocessors/Microcontrollers Via 8-Bit
  Asynchronous Read/Write Data Bus
` Easy Programming Via Scan-Level
  Command Set and Smart TAP Control
` Transparently Generate Protocols to
  Support Multidrop TAP Configurations
  Using TI's Addressable Scan Port
` Flexible TCK Generator Provides
  Programmable Division, Gated-TCK, and
  Free-Running-TCK Modes
` Discrete TAP Control Mode Supports
  Arbitrary TMS/TDI Sequences for
  Non-Compliant Targets
` Programmable 32-Bit Test Cycle Counter
  Allows Virtually Unlimited Scan/Test Length
` Accommodate Target Retiming (Pipeline)
  Delays of Up to 15 TCK Cycles
` Test Output Enable (TOE) Allows for
  External Control of TAP Signals
` High-Drive Outputs (32-mA IOH, 64-mA IOL)
  at TAP Support Backplane Interface and/or
  High Fanout
` Package Options Include Plastic
  Small-Outline (DW) Package, Ceramic Chip
  Carriers (FK), and Ceramic 300-mil DIPs (JT)



Pinout

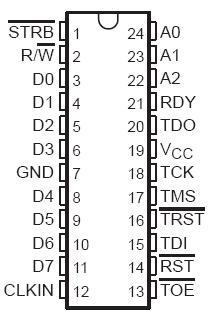

  Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, VO
(see Note 1): D, RDY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC + 0.5 V
TCK, TDO, TMS, TRST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Current into any output in the low state, IO: SN54LVT8980 (D, RDY) . . . . . . . . . . . . . . . . . . . . . . . .   12 mA
SN54LVT8980 (TCK, TDO, TMS, TRST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  96 mA
SN74LVT8980 (D, RDY) . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .12 mA
SN74LVT8980 (TCK, TDO, TMS, TRST) . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  128 mA
Current into any output in the high state, IO
(see Note 2): SN54LVT8980 (D, RDY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  16 mA
SN54LVT8980 (TCK, TDO, TMS, TRST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   48 mA
SN74LVT8980 (D, RDY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .16 mA
SN74LVT8980 (TCK, TDO, TMS, TRST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..50 mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Output clamp current, IOK (VO > VCC): D, RDY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  50 mA
Package thermal impedance, qJA (see Note 3): DW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. This current flows only when the output is in the high state and VO > VCC.
3. The package thermal impedance is calculated in accordance with JESD 51.



Description

The SN74LVT8980 embedded test-bus controllers (eTBC) are members of the TI broad family of testability integrated circuits. This family of devices supports IEEE Std 1149.1-1990 boundary scan to facilitate testing of complex circuit assemblies. Unlike most other devices of this family, the eTBC is not a boundary-scannable device; rather, SN74LVT8980's function is to master an IEEE Std 1149.1 (JTAG) test access port (TAP) under the command of an embedded host microprocessor/microcontroller. Thus, the eTBC enables the practical and effective use of the IEEE Std 1149.1 test-access infrastructure to support embedded/built-in test, emulation, and configuration/maintenance facilities at board and system levels.

The eTBC masters all TAP signals required to support one 4- or 5-wire IEEE Std 1149.1 serial test bus test clock (TCK), test mode select (TMS), test data input (TDI), test data output (TDO), and test reset (TRST). All such signals can be connected directly to the associated target IEEE Std 1149.1 devices SN74LVT8980 without need for additional logic or buffering. However, as well as being directly connected, the TMS, TDI, and TDO signals can be connected to distant target IEEE Std 1149.1 devices via a pipeline, with a retiming delay of up to 15 TCK cycles; the eTBC automatically handles all associated serial-data justification.

Conceptually, the eTBC operates as a simple 8-bit memory- or I/O- mapped peripheral to a microprocessor/microcontroller (host). High-level commands and parallel data are passed to/from the eTBC via SN74LVT8980's generic host interface, which includes an 8-bit data bus (D7D0) and a 3-bit address bus (A2A0). Read/write select (R/W) and strobe (STRB) signals are implemented so that the critical host-interface timing is independent of the CLKIN period. An asynchronous ready (RDY) indicator is provided to hold off, or insert wait states into, a host read/write cycle when the eTBC cannot respond immediately to the requested read/write operation. High-level commands are issued by the host to cause the eTBC to generate the TMS sequences necessary to move the test bus from any stable TAP-controller state to any other such stable state, to scan instruction or data through test registers in target devices, and/or to execute instructions in the Run-Test/Idle TAP state. A 32-bit counter of SN74LVT8980 can be programmed to allow a predetermined number of scan or execute cycles.

About SN74LVT8980,During scan operations, serial data that appears at the TDI input is transferred into a serial-to-4 * 8-bit-parallel first-in/first-out (FIFO) read buffer, which can then be read by the host to obtain the return serial-data stream up to eight bits at a time. Serial data that is to be transmitted from the TDO output is written by the host, up to eight bits at a time, to a 4 * 8-bit-parallel-to-serial FIFO write buffer.

In addition to such simple state-movement, scan, and run-test operations, the eTBC SN74LVT8980 supports several additional commands that provide for input-only scans, output-only scans, recirculate scans (in which TDI is mirrored bac to TDO), and a scan mode that generates the protocols used to support multidrop TAP configurations using TI's addressable scan port. Two loopback modes also are supported that allow the microprocessor/microcontroller host to monitor the TDO or TMS data streams output by the eTBC.

The eTBC SN74LVT8980's flexible clocking architecture allows the user to choose between free-running (in which the TCK always follows CLKIN) and gated modes (in which the TCK output is held static except during state-move, run-test, or scan cycles) as well as to divide down TCK from CLKIN. A discrete mode is also available in which the TAP is driven strictly by read/write cycles under full control of the microprocessor/microcontroller host. These features ensure that virtually any IEEE Std 1149.1 target device or device chain even where such may not fully comply to IEEE Std 1149.1 can be serviced by the eTBC SN74LVT8980.

While most operations of the eTBC SN74LVT8980 are synchronous to CLKIN, a test-output enable (TOE) is provided for output control of the TAP outputs, and a reset (RST) input is provided for hardware reset of the eTBC. The former can be used to disable the eTBC so that an external controller can master the associated IEEE Std 1149.1 test bus. The SN54LVT8980 is characterized for operation over the full military temperature range of 55°C to 125°C. The SN74LVT8980 is characterized for operation from 40°C to 85°C.
