Features:

· Members of the Texas Instruments
     WidebusE Family
· State-of-the-Art Advanced BiCMOS
     Technology (ABT) Design for 3.3-V
     Operation and Low Static-Power
     Dissipation
· Output Ports Have Equivalent 22-W Series
     Resistors, So No External Resistors Are
     Required
· Support Mixed-Mode Signal Operation (5-V
     Input and Output Voltages With 3.3-V VCC)
· Support Unregulated Battery Operation
     Down to 2.7 V
· Typical VOLP (Output Ground Bounce)
     < 0.8 V at VCC = 3.3 V, TA = 25°C
· Ioff and Power-Up 3-State Support Hot
    Insertion
· Bus Hold on Data Inputs Eliminates the
    Need for External Pullup/Pulldown
    Resistors
· Distributed VCC and GND Pin Configuration
    Minimizes High-Speed Switching Noise
· Flow-Through Architecture Optimizes PCB
     Layout
· Latch-Up Performance Exceeds 250 mA Per
    JESD 17
· ESD Protection Exceeds 2000 V Per
    MIL-STD-883, Method 3015; Exceeds 200 V
    Using Machine Model (C = 200 pF, R = 0)
· Package Options Include Plastic Shrink
    Small-Outline (DL) and Thin Shrink
    Small-Outline (DGG) Packages and 380-mil
    Fine-Pitch Ceramic Flat (WD) Package
    Using 25-mil Center-to-Center Spacings


Pinout

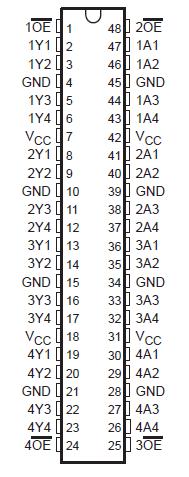

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 0.5 V to4.6 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 0.5 V to7 V
Voltage range applied to any output in the high-impedance
or power-off state, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Voltage range applied to any output in the high state, VO (see Note 1) . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Current into any output in the low state, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 30m
Current into any output in the high state, IO (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . .50mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50m
Package thermal impedance, JA (see Note 3): DGG package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89°C/W
DL package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to150°C


Description

The SN74LVTH162240 devices are 16-bit buffers/drivers designed specifically for low-voltage (3.3-V) VCC operation and to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. They have the capability to provide a TTL interface to a 5-V system environment.

These devices SN74LVTH162240 can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer and provide inverting outputs and symmetrical active-low output-enable (OE) inputs.

The SN74LVTH162240 outputs, which are designed to source or sink up to 12 mA, include equivalent 22-W series resistors to reduce overshoot and undershoot.
