Features:

` Members of the Texas Instruments Widebus™
    Family
` State-of-the-Art Advanced BiCMOS
    Technology (ABT) Design for 3.3-V Operation
    and Low Static-Power Dissipation
` Support Mixed-Mode Signal Operation (5-V
    Input and Output Voltages With 3.3-V VCC)
` Support Unregulated Battery Operation Down
    to 2.7 V
` Typical VOLP (Output Ground Bounce) <0.8 V
    at VCC = 3.3 V, TA = 25
` Distributed VCC and GND Pins Minimize
    High-Speed Switching Noise
` Flow-Through Architecture Optimizes PCB
    Layout
` Ioff and Power-Up 3-State Support Hot
    Insertion
` Bus Hold on Data Inputs Eliminates the Need
    for External Pullup/Pulldown Resistors
` Latch-Up Performance Exceeds 500 mA Per
    JESD 17
` ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)



Pinout

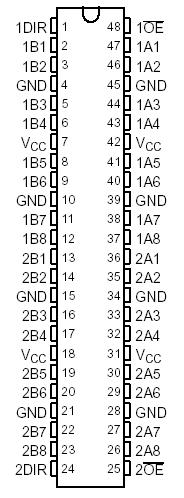

  Connection Diagram


Specifications

MIN          MAX UNIT
VCC Supply voltage range 0.5         4.6 V
VI Input voltage range(2) 0.5           7 V
VO Voltage range applied to any output in the high-impedance or power-off state(2) 0.5           7 V
VO Voltage range applied to any output in the high state(2) 0.5     VCC + 0.5 V
IO Current into any output in the low state SN54LVTH16245A                    96 mA
SN74LVTH16245A                   128
IO Current into any output in the high state(3) SN54LVTH16245A                    48 mA
SN74LVTH16245A                    64
IIK Input clamp current VI < 0                  50 mA
IOK Output clamp current VO < 0                  50 mA
JA Package thermal impedance(4) DGG package                     70 /W
DGV package                     58
DL package                     63
GQL/ZQL package                     42
GRD/ZRD package                     36
Tstg Storage temperature range  65           150



Description

The SN74LVTH16245A devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

The devices SN74LVTH16245A are designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the output-enable (<a href="#" style="text-decoration:overline;">OE</a>) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

About SN74LVTH16245A,Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

When VCC is between 0 and 1.5 V, the devices SN74LVTH16245A are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, <a href="#" style="text-decoration:overline;">OE</a> should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

These devices SN74LVTH16245A are fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high impedance state during power up and power down, which prevents driver conflict.
