SN74LVTH16646

PinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 VInput voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

product image

SN74LVTH16646 Picture
See larger image
SeekIC No. : 004499471 Detail

SN74LVTH16646: PinoutSpecificationsSupply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 VInput voltage range, VI (s...

SN74LVTH16646 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVTH16646
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

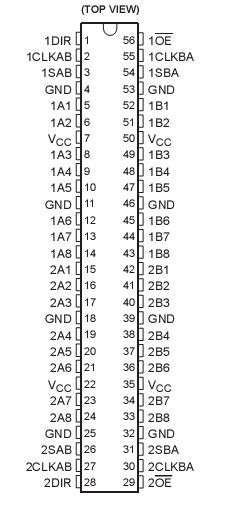

Connection Diagram


Specifications

Supply voltage range, VCC   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4.6 V
Input voltage range, VI (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 7 V
Voltage range applied to any output in the high-impedance
or power-off state, V O (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...... . . . . . . .  0.5 V to 7 V
Voltage range applied to any output in the high state, VO  (see Note 1)  . . . . . . . . . . ....... . . 0.5 V to VCC  + 0.5 V

Current into any output in the low state, IO : ...........................................................................SN54LVTH16646 96 mA

Current into any output in the high state, I O..........................................................................SN74LVTH16646 128 mA.
                                                                               (see Note 2): SN54LVTH16646  . . . . . . . . . . ... . . . . . . . . . .  48 mA

                                                                                                       SN74LVTH16646 ............................................64 mA
Input clamp current, I IK (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA

Output clamp current, IOK  (VO  < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Package thermal impedance, JA (see Note 3): DGG package  . . . . . . . . . . . . . . . . . . . . . . . . . . . ........... . . .  81°C/W
                                                                           DL package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ........... . . . 74°C/W
Storage temperature range, Tstg   65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65 to 150



Description

The SN74LVTH16646 devices are 16-bit bus transceivers designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment.

These devices SN74LVTH16646 can be used as two 8-bit transceivers or one 16-bit transceiver. Data on the A or B bus is clocked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the 'LVTH16646 devices.
