SN74LVTH32245

Features: · Member of the Texas Instruments Widebus+™ Family· State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low Static-Power Dissipation· Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C· Ioff and Power-Up 3-State Support Hot Insertio...

product image

SN74LVTH32245 Picture
See larger image
SeekIC No. : 004499495 Detail

SN74LVTH32245: Features: · Member of the Texas Instruments Widebus+™ Family· State-of-the-Art Advanced BiCMOS Technology (ABT) Design for 3.3-V Operation and Low Static-Power Dissipation· Typical VOLP (Outpu...

SN74LVTH32245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVTH32245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Member of the Texas Instruments
      Widebus+™ Family
· State-of-the-Art Advanced BiCMOS
     Technology (ABT) Design for 3.3-V
     Operation and Low Static-Power
     Dissipation
· Typical VOLP (Output Ground Bounce)
     <0.8 V at VCC = 3.3 V, TA = 25°C
· Ioff and Power-Up 3-State Support Hot
    Insertion
· Supports Unregulated Battery Operation
    Down to 2.7 V
· Supports Mixed-Mode Signal Operation
    (5-V Input and Output Voltages With
    3.3-V VCC)
· Bus Hold on Data Inputs Eliminates the
    Need for External Pullup/Pulldown
    Resistors
· Latch-Up Performance Exceeds 100 mA Per
    JESD 78, Class II
· ESD Protection Exceeds JESD 22
    − 2000-V Human-Body Model (A114-A)
    − 200-V Machine Model (A115-A)
    − 1000-V Charged-Device Model (C101)


Pinout

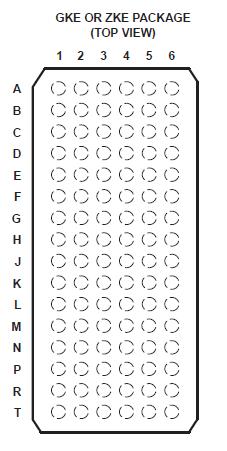

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. −0.5 V to4.6V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. −0.5 V to7 V
Voltage range applied to any output in the high-impedance
or power-off state, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Voltage range applied to any output in the high state, VO (see Note 1) . . . . . . . . . . . . . −0.5 V to VCC + 0.5 V
Current into any output in the low state, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 128mA
Current into any output in the high state, IO (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64mA
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  −50mA
Output clamp current, IOK (VO < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .  −50mA
Package thermal impedance, JA (see Note 3): GKE/ZKE package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . −65°C tO150°C


Description

The SN74LVTH32245 is a 32-bit noninverting 3-state transceiver designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

This device SN74LVTH32245 can be used as four 8-bit transceivers, two 16-bit transceivers, or one 32-bit transceiver. The device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the devices so that the buses are effectively isolated.

When VCC is between 0 and 1.5 V, the device SN74LVTH32245 is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

This device SN74LVTH32245 is fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry
disables the outputs, preventing damaging current backflow through the device when it is powered down.  The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended
