Features:

·  Designed to Reduce Reflection Noise
·  Repetitive Peak Forward Current 300 mA
·  8-Bit Array Structure Suited for
   Bus-Oriented Systems


Pinout

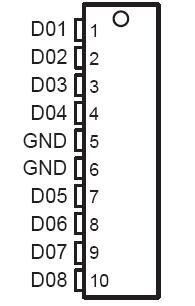

Connection Diagram


Specifications

Steady-state reverse voltage, VR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Continuous forward current, IF: Any D terminal from GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 mA
Total through all GND terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 mA
Repetitive peak forward current, IFRM (see Note 1): Any D terminal from GND . . . . . . . . . . . . . . . . . . 300 mA
Total through all GND terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 A
Continuous total power dissipation at (or below) 25°C free-air temperature . . . . . . . . . . . . . . . . . . .1000 mW
Operating free-air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: These values apply for tw 3 100 ms, duty cycle 3 20%.


Description

This Schottky barrier diode bus-termination array SN74S1056 is designed to reduce reflection noise on memory bus lines. This device consists of an 8-bit high-speed Schottky diode array suitable for a clamp to GND.

The SN74S1056 is characterized for operation from 0°C to 70°C.
