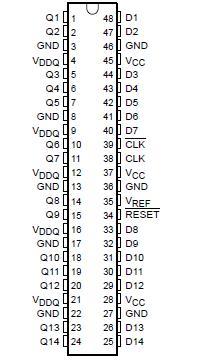

Connection Diagram


Specifications

Supply voltage range, VCC or VDDQ . .. . . . . . . . . . . . . . . . . . 0.5 V to 3.6 V
Input voltage range, VI (see Notes 1 and 2) .. . . . . . . 0.5 V to VCC + 0.5 V
Output voltage range, VO (see Notes 1 and 2) . .  . . 0.5 V to VDDQ + 0.5 V
Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Output clamp current, IOK (VO < 0 or VO > VDDQ) . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VDDQ) . . . . . . . . . . . . . . . . ±50 mA
Continuous current through each VCC, VDDQ, or GND . . . . . . . . . . . ±100 mA
Package thermal impedance, JA (see Note 3).. . . . . . . . . . . . . . . . . 70°C/W
Storage temperature range, Tstg . . .. . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
             2. This value is limited to 3.6 V maximum.
             3. The package thermal impedance is calculated in accordance with JESD 51-7.


Description

This 14-bit registered buffer SN74SSTV16857 is designed for 2.3-V to 2.7-V VCC operation.All inputs are SSTL_2, except the LVCMOS reset (RESET) input. All outputs are SSTL_2, Class II compatible.
