SN75130

Features: ` Meets or Exceeds the Requirements of IBM 360/370 Input/Output Interface Specification GA22-6974-3` Minimum Output Voltage of 3.11 V at IOH = 59.3 mA` Fault-Flag Circuit Output Signals Driver Output Fault` Fault-Detection Current-Limit Circuit Minimizes Power Dissipation During a Fault ...

product image

SN75130 Picture
See larger image
SeekIC No. : 004499588 Detail

SN75130: Features: ` Meets or Exceeds the Requirements of IBM 360/370 Input/Output Interface Specification GA22-6974-3` Minimum Output Voltage of 3.11 V at IOH = 59.3 mA` Fault-Flag Circuit Output Signals Dr...

SN75130 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN75130
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Meets or Exceeds the Requirements of IBM 360/370 Input/Output Interface Specification GA22-6974-3
` Minimum Output Voltage of 3.11 V at IOH = 59.3 mA
` Fault-Flag Circuit Output Signals Driver Output Fault
` Fault-Detection Current-Limit Circuit Minimizes Power Dissipation During a Fault Condition
` Common Enable and Common Fault Flag
` Designed to Be an Improved Replacement for the MC3485

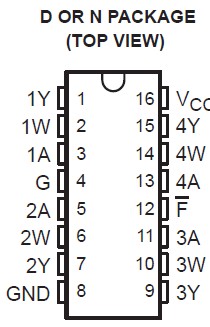

Pinout

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.


Description

The SN75130 quadruple line driver is designed to meet the IBM 360/370 I/O specification GA22-6974-3. The output voltage is 3.11 V minimum (at IOH = 59.3 mA) over the recommended ranges of supply voltage (4.5 V to 5.95 V) and temperature (0°C to 70°C). Driver outputs use a fault-detection current-limit circuit to allow high drive current but still minimize power dissipation when the output is shorted to ground. The SN75130 is compatible with standard TTL logic and supply voltages.

Fault-flag circuitry SN75130 is designed to sense and signal a line short on any Y line. Upon detecting an output fault condition, the fault-flag circuit forces the driver output into the off (low) state and signals a fault condition by causing the fault-flag output to go low.

The SN75130 can drive a 50-W load or a 90-W load as used in many I/O systems. Optimum performance can be achieved when the device is used with either the SN75128 or SN75129 line receiver. Also, see the SN751730 for new 360/370 interface designs.

The SN75130 is characterized for operation from 0°C to 70°C.
