SN75175N

Number of Input Lines :
Number of Output Lines :
Polarity :
Packaging : Tube
Mounting Style : Through Hole
Package / Case : DIP-16
Maximum Operating Temperature : + 70 C
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V


Features:

• Meets EIA Standards EIA422A and EIA423A, EIA485
• Meets CCITT Recommendations V.10, V.11, X.26, and X.27
• Designed for Multipoint Transmission on Long Bus Lines in Noisy
   Environments
• 3State Outputs
• CommonMode Input Voltage Range . . . 12 V to 12 V
• Input Sensitivity . . . ±200 mV
• Input Hysteresis . . . 50 mV Typ
• High Input Impedance . . . 1 EIA485 Unit Load
• Operates from Single 5.0 V Supply
• Lower Power Requirements
• PlugIn Replacement for MC3486

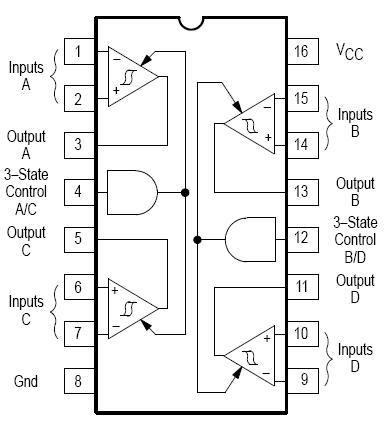

Pinout




Specifications

Rating	Symbol	Value	Unit
Power Supply Voltage	VCC	7.0	Vdc
Input Common Mode Voltage	VICM	±25	Vdc
Input Differential Voltage	VID	±25	Vdc
ThreeState Control Input Voltage	VI	7.0	Vdc
Output Sink Current	IO	50	mA
Storage Temperature	Tstg	65 to +150	°C
Operating Junction Temperature	TJ	+150	°C

Description

The Motorola SN75175N is a monolithic quad differential line receiver with threestate outputs. It is designed specifically to meet the requirements of EIA485, EIA422A/23A Standards and CCITT recommendations.

The device SN75175N is optimized for balanced multipoint bus transmission at rates up to 10 megabits per second. It also features high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common mode input voltage range of 12 V to 12 V. The SN75175 is designed for optimum performance when used with th SN75172 or SN75174 quad differential line drivers.

Parameters:

Technical/Catalog Information	SN75175N
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	0/4
Type	Line Receiver
Voltage - Supply	4.75 V ~ 5.25 V
Package / Case	16-DIP (300 mil)
Packaging	Tube
Protocol	RS422, RS423, RS485
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN75175N SN75175N 296 1736 5 ND 29617365ND 296-1736-5
