SN7534051

Features: · Meet or Exceed Standards TIA/EIA-422-B and ITU Recommendation V.11 · Receiver Input Sensitivity: ±200mV · Receiver Input Impedance: 12 kW Min· Operate From Single 5-V Power Supply · Driver 3-State Outputs· Driver Positive and Negative Current Limiting · Receiver 3-State Outputs (SN7534...

product image

SN7534051 Picture
See larger image
SeekIC No. : 004499635 Detail

SN7534051: Features: · Meet or Exceed Standards TIA/EIA-422-B and ITU Recommendation V.11 · Receiver Input Sensitivity: ±200mV · Receiver Input Impedance: 12 kW Min· Operate From Single 5-V Power Supply · Driv...

SN7534051 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN7534051
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Meet or Exceed Standards TIA/EIA-422-B and  ITU Recommendation V.11
· Receiver Input Sensitivity: ±200mV
· Receiver Input Impedance: 12 kW Min
· Operate From Single 5-V Power Supply
· Driver 3-State Outputs
· Driver Positive and Negative Current Limiting
· Receiver 3-State Outputs (SN7534050 Only




Pinout

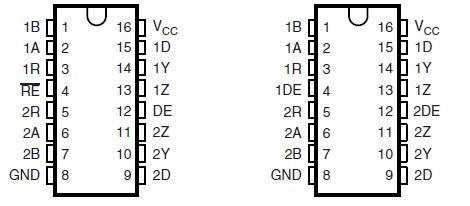

Connection Diagram


Specifications


MIN
MAX
UNIT
VCC
 Supply voltage(2)
7
V
VI
 Input voltage
DE, RE, D inputs
7
V
Vi
 Receiver input voltage
A or B inputs
±25
V
VID
 Receiver differential output voltage(3)
±25
V
VO
 Driver output voltage range
10
15
V
IOL
 Receiver low-level output current
50
mA
JA
 Package thermal impedance(4)
N package
66
°C/W
NS package
68
 Operating free-air temperature range
20
85
°C
Tstg
 Storage temperature range
-65
150
°C
 Lead temperature, 1.6 mm (1/16 in) from case for 10 s
260
°C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltages, except differential input voltage, are with respect to the network GND.
(3) Differential input voltage is measured at the noninverting terminal, with respect to the inverting terminal.
(4) The package thermal impedance is calculated in accordance with JESD 51, except for through-hole packages, which use a trace length of zero.


Description

The SN7534050 and SN7534051 dual differential drivers and receivers are monolithic integrated circuits designed to meet the requirements of ANSI standards TIA/EIA-422-B and ITU Recommendations V.11.

The driver outputs SN7534051 provide limiting for both positive and negative currents and thermal shutdown protection from line fault conditions on transmission bus line.

The SN7534050 combines dual 3-state differential drivers and dual 3-state differential input receivers. The drivers and receivers have active-high and active-low enables, respectively which can be externally connected together to function as direction control. SN7534051 drivers each have an individual active-high enable.
