Product Details

Description



Features:

• Each Device Drives 12 Lines
• 60-V Output Voltage Swing Capability
• 25-mA Output Source Current Capability
• High-Speed Serially-Shifted Data Input
• TTL-Compatible Inputs
• Latches on All Driver Outputs

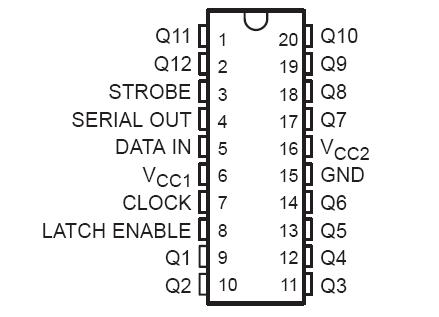

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC1 (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 V
Supply voltage, VCC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  70 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCC1
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, TA:SN65512B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
SN75512B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
NOTES: 1. Voltage values are with respect to network ground terminal.


Description

The SN65512B and SN75512B are monolithic BIDFET† integrated circuits designed to drive a dot matrix or segmented vacuum fluorescent display.

All device inputs are diode-clamped pnp inputs and assume a high logic level when open circuited. The nominal input threshold voltage is 1.5 V. Outputs are totem-pole structures formed by an npn emitter-follower and double-diffused MOS (DMOS) transistors.

The device SN75512B consists of a 12-bit shift register, 12 latches, and 12 output AND gates. Serial data is entered into the shift register on the low-to-high transition of CLOCK. When high, LATCH ENABLE transfers the shift register contents to the outputs of the 12 latches. The active-low STROBE input enables all Q outputs. Serial data output from the shift register can be used to cascade shift registers. This output is not affected by LATCH ENABLE or STROBE.

The SN65512B is characterized for operation from 40°C to 85°C. The SN75512B is characterized for operation from 0°C to 70°C.
