SN75ALS161

PinoutSpecificationsSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 VInput voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 VLow-l...

product image

SN75ALS161 Picture
See larger image
SeekIC No. : 004499677 Detail

SN75ALS161: PinoutSpecificationsSupply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 VInput voltage, VI . . . . . . . . . . . . . . ...

SN75ALS161 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN75ALS161
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

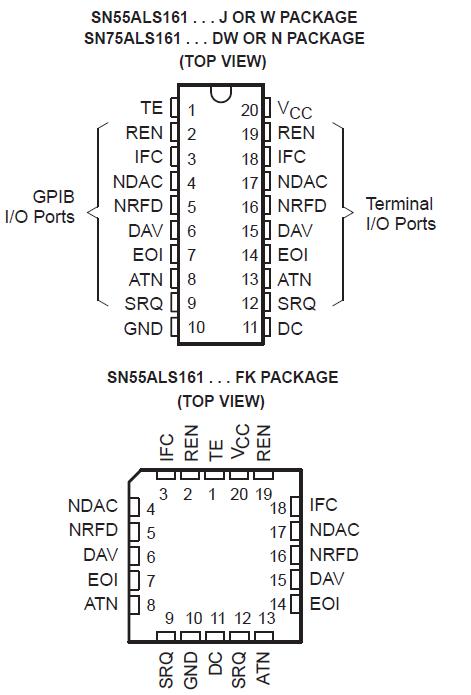

Connection Diagram


Specifications

Supply voltage, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Input voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 5.5 V
Low-level driver output current, IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA
Continuous total dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . See Dissipation Rating Table
Package thermal impedance, qJA (see Note 2): DW package . . . . . . . . .  . . . . . . . . . . . . . . 58°C/W
N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ......................................................69°C/W
Case temperature for 60 seconds: FK package, TC . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from the case for 60 seconds: J or W package . . . .  . 300°C
Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: DW or N package . . . . 260°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C


Description

The SN55ALS161 and SN75ALS161 Meight-channel general-purpose interface bus transceivers are high-speed, advanced low-power Schottky-process devices designed to provide the bus-management and data-transfer signals between operating units of a single-controller instrumentation system. When combined with the SN55ALS160 and SN75ALS160 octal bus transceivers, these devices provide a complete 16-wire interface for the IEEE 488 bus.


The SN55ALS161 and SN75ALS161 devices feature eight driver-receiver pairs connected in a front-to-back configuration to form input/output (I/O) ports at both the bus and terminal sides. The direction of data through these driver-receiver pairs is determined by the direction-control (DC) and talk-enable (TE) signals.
