Features:

1.2.1 SCSI Bus Interface
• Complies with ANSI X3.131-1986 SCSI standard
• Performs INITIATOR and TARGET functions
• Supports arbitration, selection, and reselection
• Performs asynchronous data transfers of up to 5 Megabytes/second (MBps)
• Performs synchronous data transfers of up to 5 Megabytes/second (MBps) with programmable
offset up to 15
• Has on-chip 48-mA transceivers
• Provides optional parity generation, checking, and pass-through
• Reduces overhead associated with initiator multi-threading by automatically handling savedata-
pointer messages, disconnects, and reconnects
• Performs automatic message and command-length decoding
• Has two 32-byte FIFOs for command and message preloading
1.2.2 Microprocessor Interface
• Provides chip control via directly-addressable registers
• Has optional address latch line for multiplexed address/data buses
• Allows DMA- or programmed-I/O data transfers
• Is interrupt-driven to minimize host polling
• Can execute multi-phase commands to minimize interrupts
• Has 24-bit transfer counter
• Provides byte-stacking control to accommodate 8-, 16-, and 32-bit systems
• Offers optional parity generation and checking
• Is equipped with separate ports for DMA and microprocessor interfacing
1.2.3 General
• Requires a single 5 V ± 5% power supply
• Low-power CMOS technology
• 68-pin PLCC package


Pinout

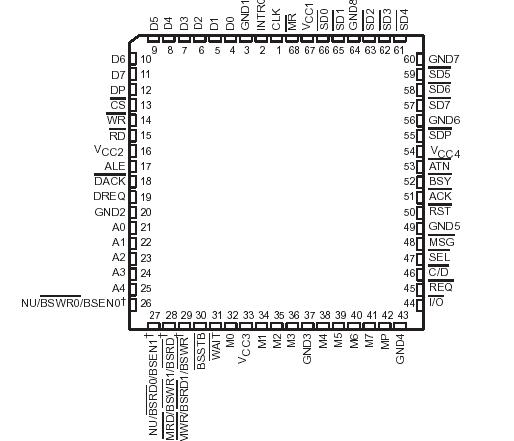

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, VI, at any input  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 7 V
Output voltage range, VO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .0.5 V to 7 V
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .65°C to 150°C
Case temperature for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C
NOTE 1: All voltage values are with respect to GND.


Description

The SN75C091A provides the capability to interface a microprocessor subsystem to the ANSI Small Computer Systems Interface (SCSI). This single-ended SCSI implementation acts as one of up to eight nodes communicating over a maximum six-meter bus as detailed in the SCSI specification (ANSI X3.131-1986). Its microprocessor and DMA interfaces allow the SN75C091A SCSI Bus Controller (SBC) to be used in a variety of host or peripheral applications.

This document of SN75C091A is not intended to serve as a tutorial on the Small Computer Systems Interface bus; users should refer to ANSI X3.131-1986 for detailed information regarding the SCSI bus.
