SN75C23243

Application

Audio                                www.ti.com/audio
Automotive                       www.ti.com/automotive
Broadband                        www.ti.com/broadband
Digital Control                   www.ti.com/digitalcontrol
Military                              www.ti.com/military
Optical Networking           www.ti.com/opticalnetwork
Security                            www.ti.com/security
Telephony                        www.ti.com/telephony
Video & Imaging               www.ti.com/video
Wireless                           www.ti.com/wireless

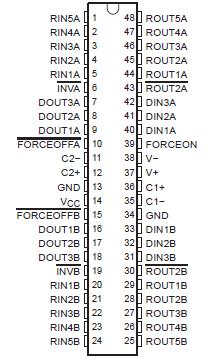

Pinout




Specifications

Supply voltage range, V_CC (see Note 1) . . .  . . . . . . . . . . . . . . . . . . . −0.3 V to 6 V
Positive output supply voltage range, V+ (see Note 1) . .  . . . . . . . . . −0.3 V to 7 V
Negative output supply voltage, V− (see Note 1) . . . . . . . . . . . . . . . . 0.3 V to −7 V
Supply voltage difference, V+ − V− (see Note 1) . .  . . . . . . . . . . . . . . . . . . . . . 13 V
Input voltage range, V_I: Driver (FORCEOFF, FORCEON)  . . . . . . . . . . . −0.3 V to 6 V
                                       Receiver . . . . . . . . . . .  . . . . .  . . . . . . . . . . . −25 V to 25 V
Output voltage range, VO: Driver . . . . . . . . . . . . . . . . . . . .. . . . . . −13.2 V to 13.2 V
                                           Receiver (INV)  . . . . . . . . . . . . . .  . −0.3 V to V_CC + 0.3 V
Package thermal impedance, JA (see Notes 2 and 3): DGG package.  . . . . 70°C/W
                                                                                      DL package .. . . . . . 63°C/W
Operating virtual junction temperature, T_J  . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Storage temperature range, T_stg . .  . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltages are with respect to network GND.
             2. Maximum power dissipation is a function of TJ(max), JA, and TA. The maximum allowable power dissipation at any allowable ambient temperature is PD = (TJ(max) − TA)/JA. Operating at the absolute maximum TJ of 150°C can affect reliability.
             3. The package thermal impedance is calculated in accordance with JESD 51-7.


Description

The SN65C23243 and SN75C23243 consist of two ports, each containing three line drivers and five line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). These devices meet the requirements of TIA/EIA-232-F and provide the electrical interface between an asynchronous communication controller and the serial-port connector. This combination of drivers and receivers matches that needed for two typical serial ports used in an IBM PC/AT, or compatible. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. In addition, these devices SN75C23243 include an always-active noninverting output (ROUT2) per port, which allows applications using the ring indicator to transmit data while the devices are powered down. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/s driver output slew-rate.
