SN75C3238E

Features: ` RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)` Meet or Exceed the Requirements of TIA/EIA-232-F and ITU v.28 Standards` Operate With 3-V to 5.5-V VCC Supply` Operate up to 1000 kbit/s` Five Drivers and Three Receivers` Auto-Powerdown Plus Feature Enables Fle...

product image

SN75C3238E Picture
See larger image
SeekIC No. : 004499711 Detail

SN75C3238E: Features: ` RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)` Meet or Exceed the Requirements of TIA/EIA-232-F and ITU v.28 Standards` Operate With 3-V to 5.5-V VCC Supply` ...

SN75C3238E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN75C3238E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` RS-232 Bus-Pin ESD Protection Exceeds
  ±15 kV Using Human-Body Model (HBM)
` Meet or Exceed the Requirements of TIA/EIA-232-F and ITU v.28 Standards
` Operate With 3-V to 5.5-V VCC Supply
` Operate up to 1000 kbit/s
` Five Drivers and Three Receivers
` Auto-Powerdown Plus Feature Enables Flexible Power-Down Mode
` Low Standby Current . . . 1 A Typical
` External Capacitors . . . 4 x 0.1 mF
` Accept 5-V Logic Input With 3.3-V Supply
` Always-Active Noninverting Receiver Output (ROUT1B)
` ESD Protection for RS-232 Interface Pins
   ±15 kV Human-Body Model (HBM)
   ±8 kV IEC61000-4-2, Contact Discharge
   ±15 kV IEC61000-4-2, Air-Gap Discharge


Application

· Battery-Powered Systems
· PDAs
· Notebooks
· Subnotebooks
· Laptops
· Palmtop PCs
· Hand-Held Equipment
· Modems
· Printers


Pinout

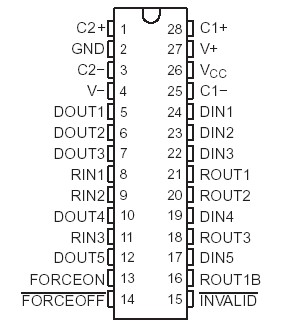

Connection Diagram


Specifications

    MIN MAX UNIT
VCC
 Supply voltage range(2)
 0.3
 6 V
V+ Positive-output supply voltage range(2) 0.3 7 V
V
 Negative-output supply voltage range(2)
 0.3 7
 V
V+ V Supply voltage difference(2)   13 V
VI
 Input voltage range
 Driver (FORCEOFF, FORCEON) -0.3
 6 V
Receiver -25 25
VO Output voltage range Driver 13.2

 13.2 V
Receiver (INVALID) 0.3 VCC + 0.3
JA
 Package thermal impedance(3) (4)
 DB package
62
 °C/W
DW package   46
PW package
62
RHB package   TBD
TJ Operating virtual junction temperature   150 °C
Tstg Storage temperature range 65 150 °C



Description

The SN65C3238E and SN75C3238E consist of five line drivers, three line receivers, and a dual charge-pump circuit with ±15-kV ESD (HBM) protection on the driver output (DOUT) and receiver input (RIN) terminals. The devices meet the requirements of TIA/EIA-232-F and provide the electrical interface between notebook and subnotebook computer applications. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. In addition, the devices SN75C3238E include an always-active noninverting output (ROUT1B), which allows applications using the ring indicator to transmit data while the device is powered down. These devices operate at data signaling rates up to 1000 kbit/s.
