SN75LBC175

Meet or Exceed the EIA StandardsRS-422-A, RS-423-A, RS-485, and CCITTRecommendation V.11
Designed to Operate With Pulse Durationsas Short as 20 ns
Designed for Multipoint Transmission onLong Bus Lines in Noisy Environments
Input Sensitivity . . . ±200 mV
Low-Power Consumption . . . 20 mA Max
Open-Circuit Fail-Safe Design
Common-Mode Input Voltage Range of7 V to 12 V
Pin Compatible With SN75175 and MC3486

Supply voltage range, V_CC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 7 V
Input voltage, V_I (A or B inputs) . . . . . . . . . . . . . .. . . .  .. . . . . . . . . . . . . . . . . .±25 V
Differential input voltage, V_ID (see Note 2)  . . . . . . . . . . . . .  . . . . . . . . . . . . . .±25 V
Voltage range at Y, 1/2EN, 3/4EN  . . . . . . . . . . . . . . . . . . . . .. .0.3 V to V_CC + 0.5 V
Continuous total dissipation  . . . . . . . . . . . . . . . .. . . . .. See Dissipation Rating Table
Operating free-air temperature range, TA: SN65LBC175   . . . . . . .. . . . 40 to 85
                                                                   SN75LBC175  . . . . . . .  . . . . . . .0 to 70
Storage temperature range, T_stg  . . . . . . . . . . . . . . . . . . . . . .. . . .. . . .65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . .  .. . . . . . . .260

The SN65LBC175 and SN75LBC175 aremonolithic, quadruple, differential line receiverswith 3-state outputs and are designed to meet therequirements of the EIA standards RS-422-A,RS-423-A, RS-485, and CCITT RecommendationV.11. The devices are optimized for balancedmultipoint bus transmission at data rates up to andexceeding 10 million bits per second. Thereceivers are enabled in pairs, with an active-highenable input. Each differential receiver input features high impedance, hysteresis forincreased noise immunity, and sensitivity of±200 mV over a common-mode input voltagerange of 12 V to 7 V. The fail-safe design ensuresthat when the inputs are open-circuited, theoutputs are always high. Both devices aredesigned using the TI proprietary LinBiCMOSEtechnology allowing low power consumption, highswitching speeds, and robustness.

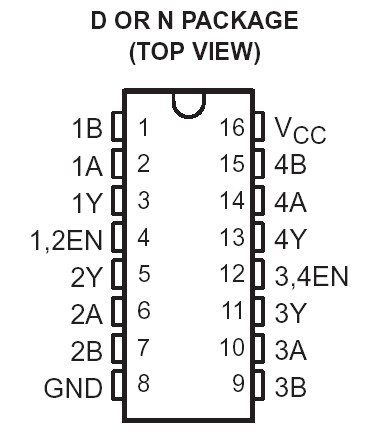

These devices offer optimum performance whenused with the SN75LBC172 or SN75LBC174quadruple line drivers. The SN65LBC175 andSN75LBC175 are available in the 16-pin DIP (N)and small-outline inline circuit (SOIC) Dpackages.

The SN65LBC175 is characterized over theindustrial temperature range of 40 to 85.The SN75LBC175 is characterized for operationover the commercial temperature range of 0to 70.
