SN75LVDS88A

Features:

􀀀 Flatlink Interface Utilizes Low Power Differential Signalling(LVDS)
􀀀 Suitable for Notebook Application
􀀀 XGA Resolution
􀀀 Six Bit System Interface
􀀀 Support Mainstream Data and Gate Drivers
􀀀 Optional Configurable Pins
􀀀 Low Voltage CMOS 3.3 V Technology
􀀀 65 MHz Phase-Lock Input
􀀀 100-pin TQFP Package for Compact LCD Module
􀀀 Tolerates 4 kV HBM ESD for LVDS Pins and 2 kV HBM for Others
􀀀 Improved Jitter Tolerance

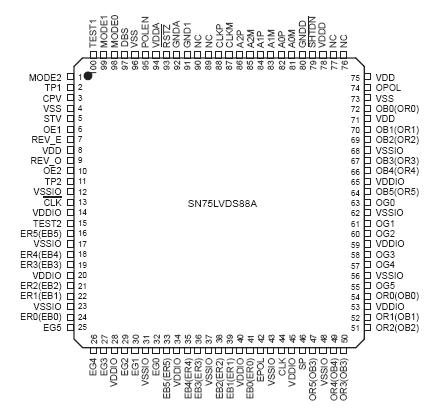

Pinout




Specifications

Supply voltage range, VCC^‡ . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 0.5 V to 4 V
Voltage range at any terminal . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 0.5 V to V_CC + 0.5 V
Continuous power dissipation . . . . . . . . . . . . . . . . . . . .. . . . See Dissipation Rating Table
Storage temperature range, T_stg . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 65°C to 150°C
Electrostatic discharge: Class 3 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 kV
                                      Class 2 B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 V
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . .. . . . . . 260°C


Description

The SN75LVDS88A (LVDS panel timing controller) integrates a Flatlink signal interface with a TFT LCD timing controller. It resides in the LCD panel and provides interface between the graphic controller and a TFT LCD panel.

The SN75LVDS88A accepts host data through 3 pairs of inputs (18-bits) making up the LVDS bus, which is a low-EMI high-throughput interface. SN75LVDS88A then reformats the received image data into a specific data format and synchronous timing suitable for driving LCD panel column and row drivers. This device supports XGA resolution.

The SN75LVDS88A is easily configured by several selection terminals and is equipped with default timing specifications to support mainstream gate and source drivers on the market.
