SN8P2501A

Features: Memory configurationOTP ROM size: 1K * 16 bits.RAM size: 48 * 8 bits. Four levels stack buffer. I/O pin configurationInput only: P1.1.Bi-directional: P0, P1, P2, P5.Wakeup: P0, P1.Pull-up resisters: P0, P1, P2, P5.External interrupt: P0.One pin with open-drain: P1.0.3 interrupt sourcesTw...

product image

SN8P2501A Picture
See larger image
SeekIC No. : 004499816 Detail

SN8P2501A: Features: Memory configurationOTP ROM size: 1K * 16 bits.RAM size: 48 * 8 bits. Four levels stack buffer. I/O pin configurationInput only: P1.1.Bi-directional: P0, P1, P2, P5.Wakeup: P0, P1.Pull-up ...

SN8P2501A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN8P2501A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory configuration
OTP ROM size: 1K * 16 bits.
RAM size: 48 * 8 bits.
Four levels stack buffer.
I/O pin configuration
Input only: P1.1.
Bi-directional: P0, P1, P2, P5.
Wakeup: P0, P1.
Pull-up resisters: P0, P1, P2, P5.
External interrupt: P0.
One pin with open-drain: P1.0.
3 interrupt sources
Two internal interrupts: T0, TC0.
One external interrupts: INT0.
Powerful instructions
One clock per machine cycle
Most of instructions are one cycle only.
All ROM area JMP instruction.
All ROM area lookup table function (MOVC)♦ One channel PWM output. (PWM0)
One channel Buzzer output. (BZ0)
Two 8-bit timer counters. (T0, TC0).
One RTC timer. (T0)
On chip watchdog timer.
Three system clocks
External high clock: RC type up to 10 MHz
External high clock: Crystal type up to 16 MHz
Internal low clock: RC type 16KHz(3V), 32KHz(5V)
Internal high clock: 16MHz RC type.
Four operating modes
Normal mode: Both high and low clock active
Slow mode: Low clock only
Sleep mode: Both high and low clock stop
Green mode: Periodical wakeup by T0 Timer
Package (Chip form support)
PDIP 14 pins
SOP 14 pins
SSOP 16 pins


Pinout

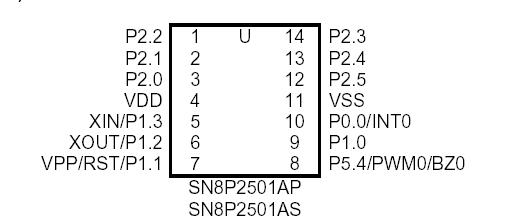

Connection Diagram


Specifications

Supply voltage (Vdd)............................. - 0.3V ~ 6.0V
Input in voltage (Vin)...................... Vss 0.2V ~ Vdd + 0.2V
Operating ambient temperature (Topr)................. -20°C ~ + 70°C
Storage ambient temperature (Tstor) ................ 30°C ~ + 125°C
Power consumption(Pc).............................. 500mW
