SN8P2624

Features: · Memory configurationOTP ROM size: 2K * 16 bits.RAM size: 64 * 8 bits.Eight levels stack buffer· I/O pin configurationBi-directional: P0, P1, P2, P5Input only pin: P0.2Programmable open-drain: P1.0, P1.1Wakeup: P0, P1 level change triggerPull-up resisters: P0, P1, P2, P5External Interru...

product image

SN8P2624 Picture
See larger image
SeekIC No. : 004499818 Detail

SN8P2624: Features: · Memory configurationOTP ROM size: 2K * 16 bits.RAM size: 64 * 8 bits.Eight levels stack buffer· I/O pin configurationBi-directional: P0, P1, P2, P5Input only pin: P0.2Programmable open-d...

SN8P2624 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN8P2624
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Memory configuration
OTP ROM size: 2K * 16 bits.
RAM size: 64 * 8 bits.
Eight levels stack buffer
· I/O pin configuration
Bi-directional: P0, P1, P2, P5
Input only pin: P0.2
Programmable open-drain: P1.0, P1.1
Wakeup: P0, P1 level change trigger
Pull-up resisters: P0, P1, P2, P5
External Interrupt trigger edge:
P0.0 controlled by PEDGE register
P0.1 is falling edge trigger only
· Four interrupt sources
Two internal interrupts: T0, TC1.
Two external interrupts: INT0, INT1.
· Powerful instructions
One clocks per instruction cycle (1T)
Most of instructions are one cycle only.
All ROM area JMP instruction.
All ROM area CALL address instruction.
All ROM area lookup table function (MOVC)
· Two 8-bit Timer/Counter
T0: Basic timer
TC1: Auto-reload timer/Counter/PWM1/Buzzer output
· On chip watchdog timer and clock source is internal low clock RC type (16KHz @3V, 32KHz @5V).
· Dual system clocks
External high clock: RC type up to 10 MHz
External high clock: Crystal type up to 16 MHz
Internal low clock: RC type 16KHz(3V), 32KHz(5V)
· Operating modes
Normal mode: Both high and low clock active
Slow mode: Low clock only
Sleep mode: Both high and low clock stop
Green mode: Periodical wakeup by T0 timer
· Package (Chip form support)
SK-DIP 28 pins
SOP 28 pins
SSOP 28 pins


Pinout

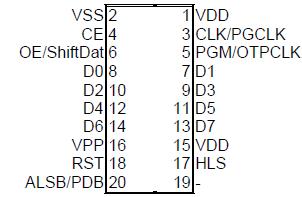

Connection Diagram


Specifications

Supply voltage (Vdd)................... - 0.3V ~ 6.0V
Input in voltage (Vin)............. Vss 0.2V ~ Vdd + 0.2V
Operating ambient temperature (Topr)
SN8P2624K, SN8P2624S, SN8P2624X .......... 0°C ~ + 70°C
SN8P2624KD, SN8P2624SD, SN8P2624XD .....40°C ~ + 85°C
Storage ambient temperature (Tstor) .......40°C ~ + 125°C
